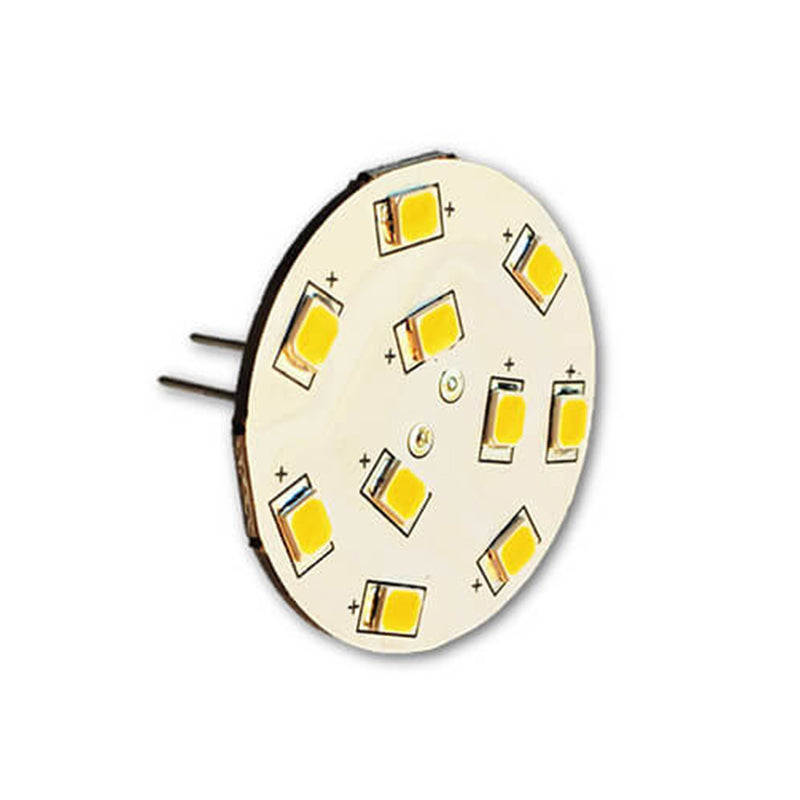

At 120 lumens, this is our brightest warm white G4/GU4 LED bulb. Proprietary PWM Constant-current drive and high output thermally-efficient SMDs combine to give record setting output in a G4/GU4 form factor.
Feature
High output SMD LEDs
Constant-current drive topology
Over-voltage protection
No radiated heat
Thermally efficient design
Also compatible with 12VAC (supplied from transformers)
Transient voltage suppression (to 60V)
Specifications
Name
Description
Output Color
Warm White
Input Voltage
10-30VDC (&12VAC)
Bulb Socket Type
G4/GU4
Socket
G4/GU4
Warranty
2 Years
Dimensions
31.5mm (Diam.)
Power Consumption
180mA/12V, 90mA/24V
Max Wattage
2.2W
Light Technology
LED
Beam Angle
90°+
Luminous Flux
170 lms.
Electrical Protections
Thermal, reverse polarity, transient suppression (up to 60V)
