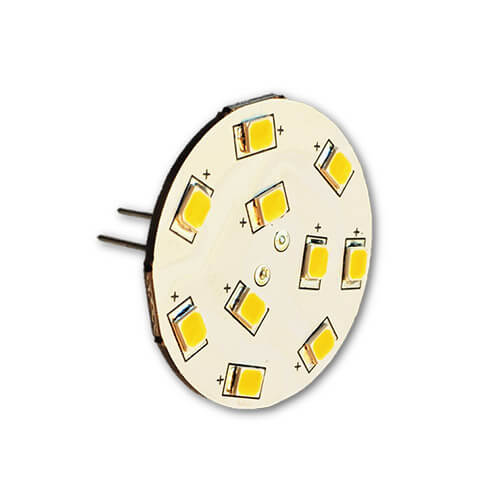

"X-Beam" LED Replacement Bulb, 10-30VDC (2.2W), Directional
"X-Beam" LED Replacement Bulb, 10-30VDC (2.2W), Directional
Regular price
$9.73 USD
Regular price
Sale price
$9.73 USD
Unit price
/
per
Shipping calculated at checkout.
"X-Beam" LED Replacement Bulb, Cool White, 10-30VDC (2.2W), Directional, G4/GU4 Socket (Back Pin)
Feature
- High output SMD LEDs
- Constant-current drive topology
- Over-voltage protection
- No radiated heat
- Thermally efficient design
- Also compatible with 12VAC (supplied from transformers)
- Transient voltage suppression (to 60V)
Specifications
| Name | Description |
|---|---|
| Output Color | Cool White |
| Input Voltage | 10-30VDC (&12VAC) |
| Bulb Socket Type | G4/GU4 |
| Socket | G4/GU4 |
| Warranty | 2 Years |
| Dimensions | 31.5mm (Diam.) |
| Power Consumption | 180mA/12V, 90mA/24V |
| Max Wattage | 2.2W |
| Light Technology | LED |
| Beam Angle | 90°+ |
| Luminous Flux | 150 lms |
| Electrical Protections | Thermal, reverse polarity, transient suppression (up to 60V) |
| Orientation | Back Pin |
| Approximate Ship Weight (lbs) | 1 |
Downloads:
Dimensional Drawing
Product Sheet
Compatibility Chart
