Wiper Motor 223BS, 12V/23Nm for 35mm (1-3/8") bulkheads

Authorized reseller and Drop Shipped. Yachting customization,
technology installation and troubleshooting

Wiper Motor 223BS, 12V/23Nm for 35mm (1-3/8") bulkheads
Yacht Gurus, inc

Wiper Motor 223BS, 12V/23Nm for 35mm (1-3/8") bulkheads

EXA2167.32
Regular price $718.75 $0.00 Unit price per
Shipping calculated at checkout.

Description

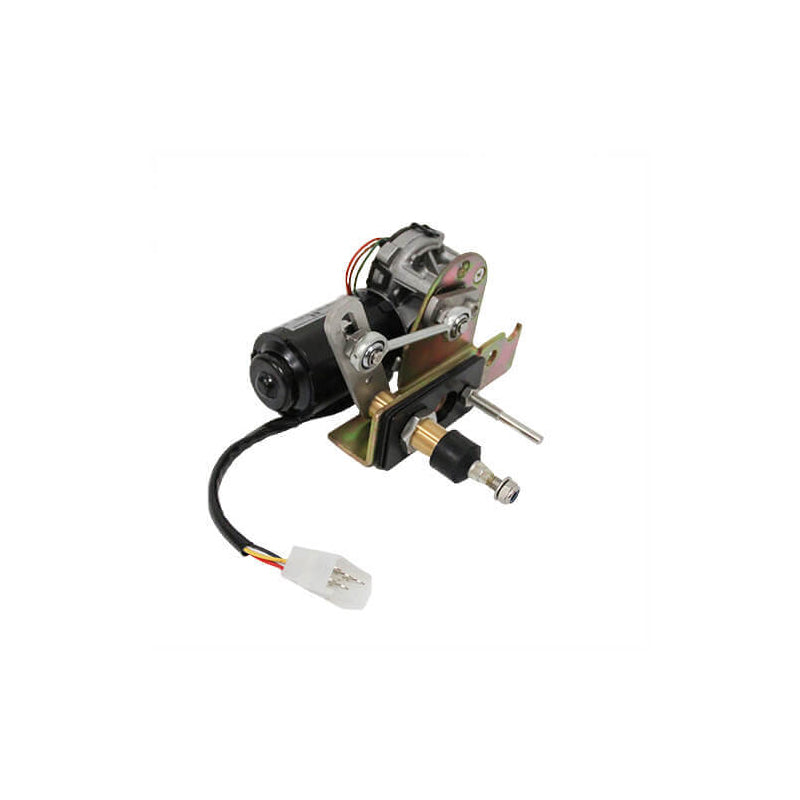

Exalto 223BS Motor for bulkhead mounting. This wiper is available in 12V and 24V and for several bulkhead thicknesses. With a torque of 23 Nm these wipers can drive arms up to 31.1" (790mm) in length in combination with blades up to 31.5" (800mm) in length. The 223BD is a pantograph wiper system. For these wipers a cover in black is available to protect the motor and keep all moving parts out of reach.

Specifications

Name Description
Voltage 12V
Max Arm Length 31.1" (790mm)
Bulkhead Thickness (mm) 35mm
Bulkhead Thickness (in.) 1-3/8"
Washing Jet Options EX2184 or EX2110
Fuse 6A (slow blow)
Max Blade Length 31.5" (800mm)
Sweep Angle Adjustment Stepless - 40°-90°
Accepts Arms EX2133*, EX2136*, EX2139* (* = AS - single spring, AS2 - dual springs, P - Polished )
Optional Motor Cover EX2115.223
Approximate Ship Weight (lbs) 5

Downloads:
Owner's Manual
Product Sheet
