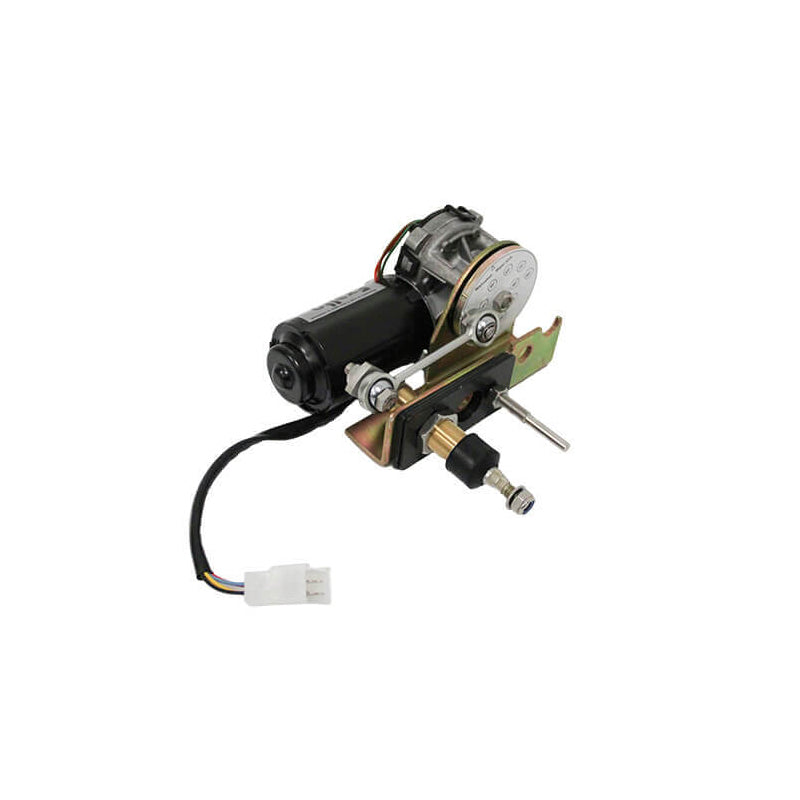

Wiper Motor 223BD, 12V/23Nm for 55mm (2-1/8") bulkheads
EXA2165.35
Regular price
$770.50
Shipping calculated at checkout.
Description
Exalto 223BD Motor for bulkhead mounting. This wiper is available in 12V and 24V and for several bulkhead thicknesses.
Specifications
Name | Description |
---|---|
Voltage | 12V |
Max Arm Length | 31.1" (790mm) |
Bulkhead Thickness (mm) | 55mm |
Bulkhead Thickness (in.) | 2-1/8" |
Washing Jet Options | EX2184 or EX2110 |
Fuse | 6A (slow blow) |
Max Blade Length | 31.5" (800mm) |
Sweep Angle Adjustment | 40°-90° Disk, 5° increments |
Accepts Arms | EX2133*, EX2136*, EX2139* (* = AS - single spring, AS2 - dual springs, P - Polished ) |
Optional Motor Cover | EX2101 or EX2115 |
Approximate Ship Weight (lbs) | 5 |
Downloads:
Questionnaire
Owner's Manual
Product Sheet
