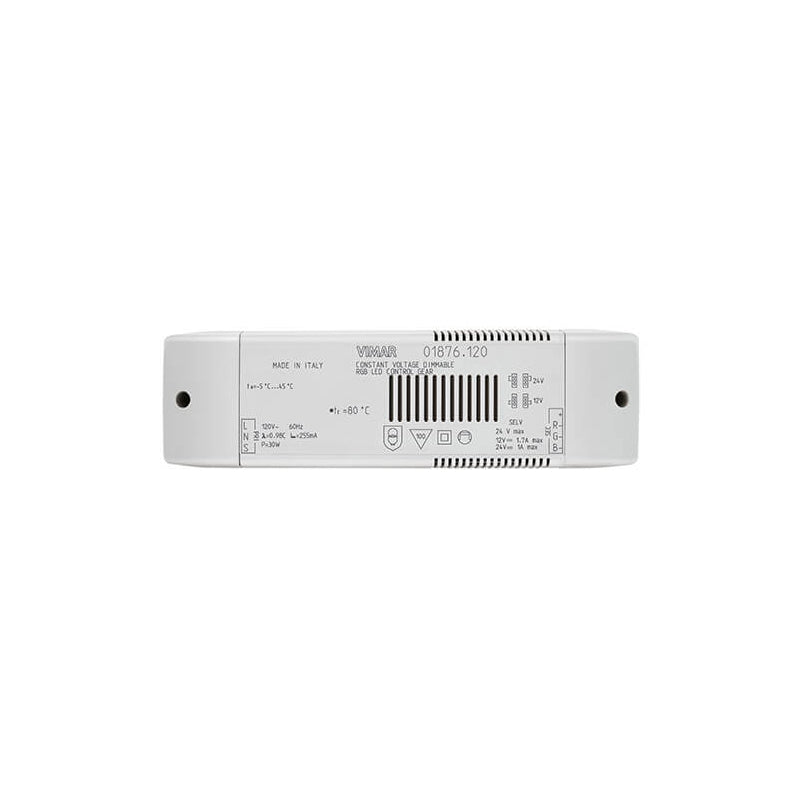

Vimar LED RGB Constant Voltage Driver, 120VAC Input,settable 12 or 24VDC output
Vimar LED RGB Constant Voltage Driver, 120VAC Input,settable 12 or 24VDC output
Regular price
$148.90 USD
Regular price
Sale price
$148.90 USD
Unit price
/
per
Shipping calculated at checkout.
Multi voltage driver 120 V~ 60 Hz for RGB LED modules, settable 12 or24 Vdc output, dimmable with RGB and FADING-SHOW dimmers.
Features:
- Suitable for RGB LED SELV modules/strip: Settable for 12 or 24 V output
- Fuse with high breaking capacity type 1A incorporated
- LED module output (+, R-, G-, B-)
- Max output current: 1.7A at 12VDC or 1A at 24VDC
- Compatible withy Eikon RGB dimmer (art. 20138.120, 19138.120, 14138.120)
- Compatible with Eikon fading-show dimmer (art. 20139.120, 19139.120, 14139.120)
Specifications:
| Name | Description |
|---|---|
| Housing Finish/Material | Thermoplastic/White |
| Certifications & Compliance | CE, EAC, ROHS |
| Class | Class II |
| Dimmer Compatibility | Vimar RGB and fading-show dimmers |
| Input Voltage | 110-277VAC |
| Dimensions | See dimensional drawing |
| Warranty | 3 Years |
| Ingress Protection | IP20 |
| Load Rating | 20 W (12 V output ), 24 W (24 V output ) |
| Max Operating Temperature | -5°C - +45°C (internal) |
| Mounting Method | Screws |
| Operating Frequency | 60 Hz |
| Efficiency | 80% (12 V , 20 W), 84% (24 V , 24 W) |
| Driver | Voltage-regulated RGB |
| Install Location | Dry location |
| Electrical Protections | Thermal (auto-off reversible), short-circuit, overload |
| Ingress Protection Rating (IP) | IP20-IP55 |
| Approximate Ship Weight (lbs) | 1 |
Downloads: Installation Instructions
