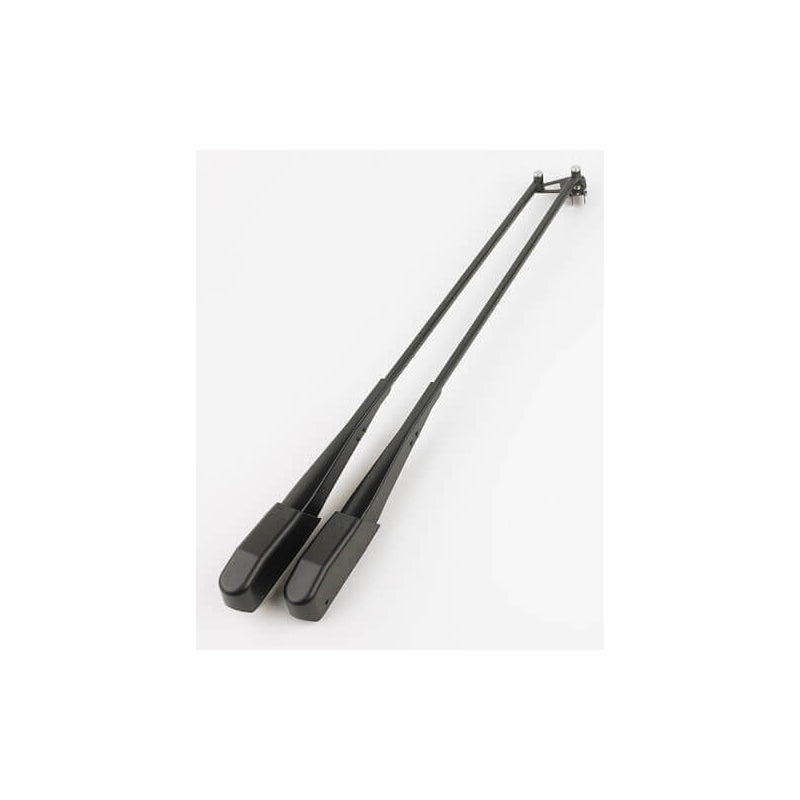

Type 1 Pantograph Arm 10.6-20.7" (375-525mm) w/ 2 Adjustable Spring Gallery
Type 1 Pantograph Arm 10.6-20.7" (375-525mm) w/ 2 Adjustable Spring Gallery
Regular price
$463.27 USD
Regular price
Sale price
$463.27 USD
Unit price
/
per
Shipping calculated at checkout.
Feature
- All 316 stainless steel components with brass attachment heads
- All arms include adjustable spring mechanism in drive gallery and idler gallery
- Arms can be folded back during boat cleaning
- Styled gallery covers for clean appearance
- Low-glare black polyester epoxy coating over sandblasted stainless steel surface for durable finish
- Accept Type 1 blades to 31½" (800mm)
- Two different optional washing jets available
- Optional tubing retainer strip holds tubing to the arm
Specifications
| Name | Description |
|---|---|
| For Motors | 223BS, 223BD, 235KK, 235KKHD |
| Min Arm Length | 14.8" (375mm) |
| Max Arm Length | 20.7" (525mm) |
| Washing Jet Options | EX2184 or EX2110 |
| Accepts Blades | EX2171-EX2179, EX2195, EX2196 |
| Accepts Heavy Duty Blades | EX216120-EX216124 |
| Tubing Retainer Strip | EX2133.03 |
| Replacement Gallery Cover | EX2105.048 |
| Approximate Ship Weight (lbs) | 3 |
