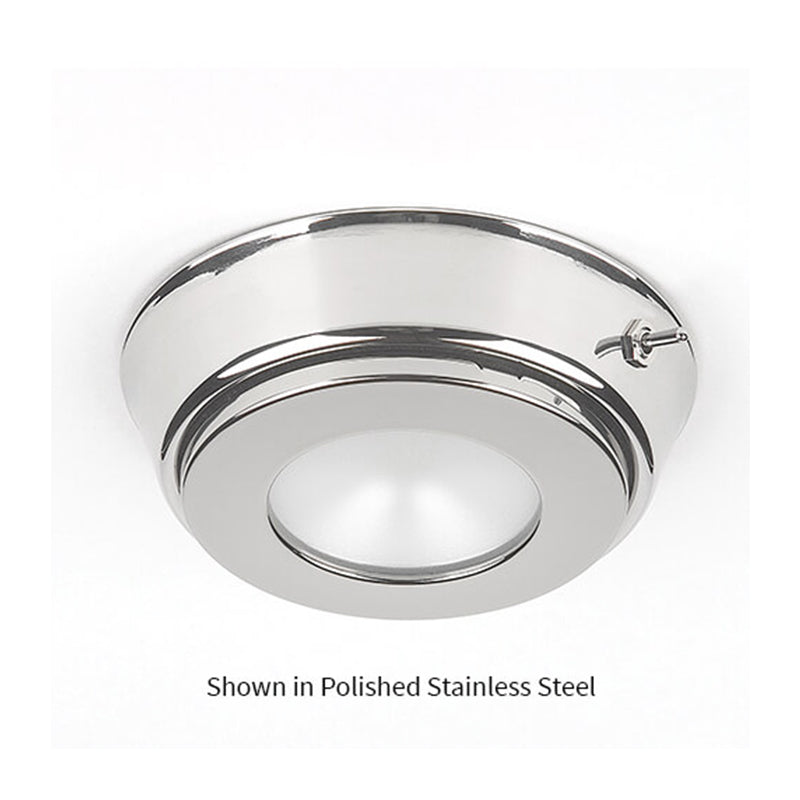

Tide PowerLED w/Base & Switch, 10-40VDC, White, Neutral White, 3.2W IP40
Tide PowerLED w/Base & Switch, 10-40VDC, White, Neutral White, 3.2W IP40
Regular price
$75.17 USD
Regular price
Sale price
$75.17 USD
Unit price
/
per
Shipping calculated at checkout.
Featuring 2-wire power & dimming, Tide easily replaces existing legacy (halogen) spots negating the need to run extra wires. Integrated drive electronics eliminates the need for remote driver installation.
Feature
- Stylish base with built-in switch
- Twist-on round stainless steel bezel
- Convenient 2-wire hook-up
- Bi-color models available
- Integrated current controlled drive circuitry
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | Black Electrophoretic Aluminum |
| Certifications & Compliance | CE-EMC, ROHS |
| Integrated Switch | Yes |
| Output Color | Neutral White |
| Lifetime Hours | 50,000 hrs |
| Class | Class III |
| Dimmer Compatibility | ILIM80130, ILIM80140 |
| Dimmer Control Interface | Momentary Push-Button |
| Trim Ring (Bezel) Dimensions | 2.86" (73mm) dia |
| Trim Ring (Bezel) Finish/Material | White |
| Halogen Equivalency | 10W |
| Input Voltage | 10-30VDC |
| Warranty | 5 Years / 1 Year Finish |
| Dimensions | See dimensional drawing |
| Lens Material | Frosted glass |
| Power Consumption | 3.2W |
| Ingress Protection | IP40 (applies only to frontal water exposure, i.e. exposed surface) |
| Dimming Range | 5-100% |
| Luminous Flux | 130 lms |
| Driver | Integrated |
| Install Location | Interior: Surface-Mount |
| Electrical Protections | Reverse Polarity, Transient & Spike Protection |
| Correlated Color Temperature (CCT) | 4000K (White LED) |
| Color Rendering Index (CRI) | 85 |
| Approximate Ship Weight (lbs) | 1 |
