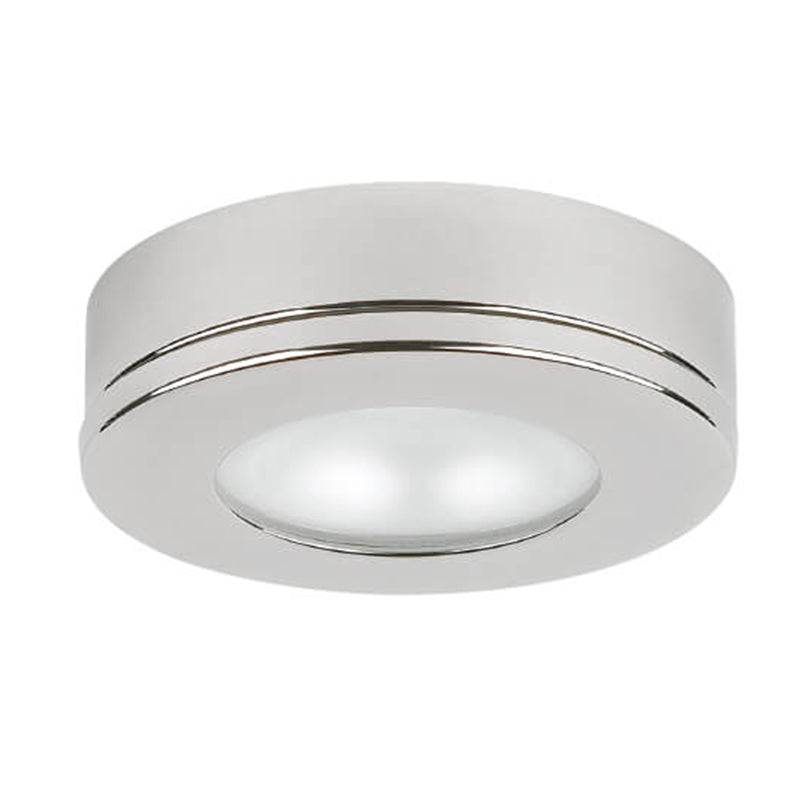

Tide PowerLED w/Base, 10-40VDC, Polished SS , Warm White, 3.2W IP40
Tide PowerLED w/Base, 10-40VDC, Polished SS , Warm White, 3.2W IP40
Regular price
$86.44 USD
Regular price
Sale price
$86.44 USD
Unit price
/
per
Shipping calculated at checkout.
Featuring 2-wire power & dimming, Tide easily replaces existing legacy (halogen) spots negating the need to run extra wires. Integrated drive electronics eliminates the need for remote driver installation.
Feature
- Round "puck" base for convenient surface-mounting
- Twist-on round stainless steel bezel
- Convenient 2-wire power & dimming
- Bi-color models can dim using single momentary switch
- Integrated current controlled drive circuitry
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | Black Electrophoretic Aluminum |
| Certifications & Compliance | CE-EMC, ROHS |
| Integrated Switch | No |
| Output Color | Warm White |
| Lifetime Hours | 50,000 hrs |
| Class | Class III |
| Dimmer Compatibility | ILIM80130, ILIM80140 |
| Dimmer Control Interface | Momentary Push-Button |
| Trim Ring (Bezel) Dimensions | 2.86" (73mm) dia |
| Trim Ring (Bezel) Finish/Material | Polished stainless steel |
| Halogen Equivalency | 10W |
| Input Voltage | 10-30VDC |
| Warranty | 5 Years / 1 Year Finish |
| Dimensions | See dimensional drawing |
| Lens Material | Frosted glass |
| Power Consumption | 3.2W |
| Ingress Protection | IP40 (applies only to frontal water exposure, i.e. exposed surface) |
| Dimming Range | 5-100% |
| Luminous Flux | 122 lms |
| Driver | Integrated |
| Install Location | Interior: Surface-Mount |
| Electrical Protections | Reverse Polarity, Transient & Spike Protection |
| Correlated Color Temperature (CCT) | 2800K (White LED) |
| Color Rendering Index (CRI) | 85 |
| Approximate Ship Weight (lbs) | 1 |
Downloads:
Product Catalog
Compatibility Chart
Dimensional Drawing
Installation Manual
Product Sheet
