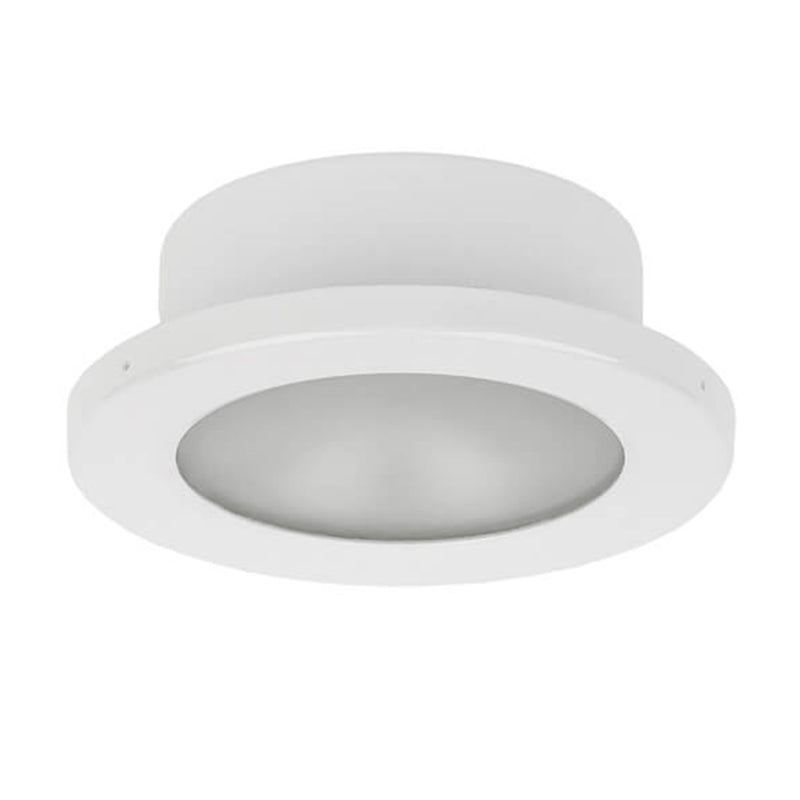

T105 PowerLED, 10-40VDC, White, Warm White, 4.7W, IP65
T105 PowerLED, 10-40VDC, White, Warm White, 4.7W, IP65
Regular price
$116.51 USD
Regular price
$167.40 USD
Sale price
$116.51 USD
Unit price
/
per
Shipping calculated at checkout.
Featuring 2-wire power & dimming, T155/180 PowerLED fixtures easily replace existing legacy (halogen) spots negating the need to run extra wires.
Feature
- Twist-on round stainless steel bezel design
- Convenient 2-wire power & dimming
- Bi-color dimming models controlled with single momentary switch
- Integrated current controlled drive circuitry
- Double gaskets for splash-proof protection
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | White/Aluminum |
| Certifications & Compliance | CE-EMC, ROHS |
| Integrated Switch | No |
| Output Color | Warm White |
| Lifetime Hours | 50,000 hrs |
| Class | Class III |
| Dimmer Compatibility | ILIM80130, ILIM80140 |
| Dimmer Control Interface | Momentary Push-Button |
| Cut-out Dimensions | 3.03" (77mm) |
| Trim Ring (Bezel) Dimensions | 4.13" (105mm) |
| Trim Ring (Bezel) Finish/Material | White |
| Halogen Equivalency | 25W |
| Input Voltage | 10-30VDC |
| Warranty | 5 Years / 1 Year Finish |
| Dimensions | See dimensional drawing |
| Power Consumption | 4.7W |
| Recessed Depth | 1.36" (35mm) |
| Lens Material | Frosted glass |
| Ingress Protection | IP65 (applies only to frontal water exposure, i.e. Exposed surface) |
| Dimming Range | 5-100% |
| Luminous Flux | 189 lms |
| Driver | Integrated |
| Install Location | Exterior (hard tops, overhangs, showers) |
| Electrical Protections | Reverse Polarity, Transient & Spike Protection |
| Correlated Color Temperature (CCT) | 2800K (White LED) |
| Color Rendering Index (CRI) | 85 |
| Approximate Ship Weight (lbs) | 1 |
Downloads:
Product Catalog
Dimensional Drawing
Compatibility Chart
Installation Instructions
Product Sheet
