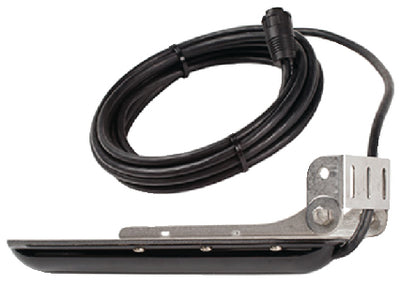

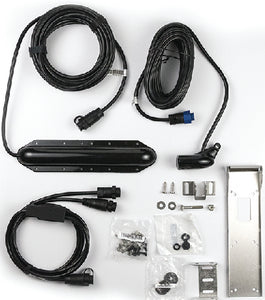

The next generation of the world's only three-channel sonar imaging with picture-perfect views. It's packed with best-in-class features that work together to deliver truly uncompromised photo-like images of the underwater world. StructureScan® HD is compatible for networking, viewing and independent control with all HDS® Gen2 and HDS® multifunction displays, as well as the Simrad NSS, NSE, NSO and the B&G Zeus multifunction displays. Features: 455kHz and 800kHz kHz frequency, Output: 500W RMS, 4000W PTP, (Voltage: 10V-17V) VDC. Power Consumption: Max: .75A. SideScan Specifications: Max Sidescan Range: 600'/183m side-to-side, Max Downscan Range: 300'/92m.
