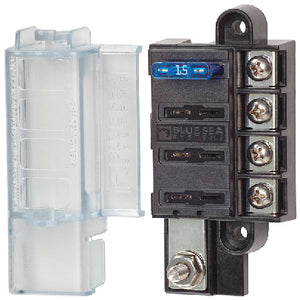

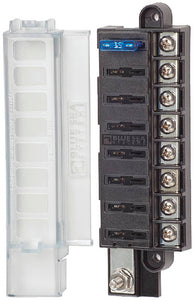

ST BLADE COMPACT FUSE BLOCK - COMMON SOURCE (BLUE SEA SYSTEMS)

Provides surface mount circuit protection for ATO^®/ATC^® Fuses in a compact footprint. The single side design allows wire entry from one side to maximize space.

• Compact common source fuse block


• Accepts ATO^® and ATC^® fast acting blade fuses


• Single side entry wiring


• Ignition Protected - for use in a gasoline engine compartment


• Insulating cover meets ABYC/USCG insulation requirements


• Tin-plated copper buses and fuse clips


• Accepts ring or snap fork type terminals


• Small format standard and custom labels available


• Fuses sold separately

Specifications:

• Voltage Max. Operating: 32V DC


• Amperage Max. Operating: 30A per circuit


• Amperage Max. Operating: 100A per block


• Fuse Type: ATO^® or ATC^® Fuses


• Screw Terminal: #8-32 Screws with captive star lock washer


• Mounting: #8 Screw (M4)
