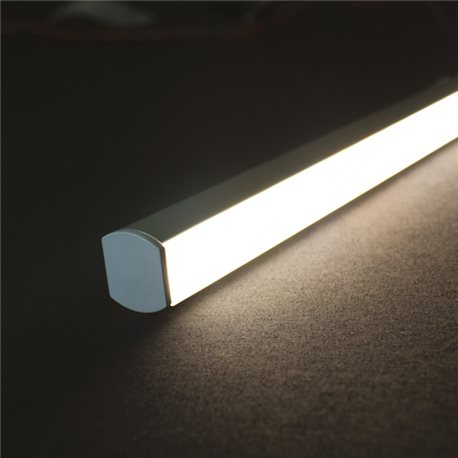

Aluminum profile LED

LED Colours:White

Cover:Opal

Data sheet

Aluminum profile LED Dim.17x18,5mm.

IP20_III_noINK2_INT

 EN62471 Photobiological risk group EN 62471

8380 8381 8382

8380-1
Simple cup + clips

8381-1

Vertical mounting

8382-1

Horizontal mounting + switch

Art.8381 - 8382 Cap cover screws included.

8380 LED L2 Length VDC  WATT LED/m WATT/m Colours Temp. LED Colours
8380.500.3200.L2 500 mm 24 4,5  120 9,6 3200 °K White
8380.500.4000.L2 500 mm 24 4,5 120 9,6 4000 °K White
8380.1000.3200.L2 1000 mm 24 9,6 120 9,6 3200 °K White
8380.1000.4000.L2 1000 mm 24 9,6 120 9,6 4000 °K White
8380 LED L6 Length VDC  WATT DIMMER LED/m WATT/m Colours Temp. LED Colours
8380.500.3200.L6 500 mm 24-27 10  6018 60 19,5 3200 °K White
8380.500.4000.L6 500 mm 24-27 10 6018 60 19,5 4000 °K White
8380.1000.3200.L6 1000 mm 24-27 19,5 6018 60 19,5 3200 °K White
8380.1000.4000.L6 1000 mm 24-27 19,5 6018 60 19,5 4000 °K White



8381 LED L2 Length VDC  WATT LED/m WATT/m Colours Temp. LED Colours
8381.500.3200.L2 500 mm 24 4,5  120 9,6 3200 °K White
8381.500.4000.L2 500 mm 24 4,5 120 9,6 4000 °K White
8381.1000.3200.L2 1000 mm 24 9,6 120 9,6 3200 °K White
8381.1000.4000.L2 1000 mm 24 9,6 120 9,6 4000 °K White
8381 LED L6 Length VDC  WATT DIMMER LED/m WATT/m Colours Temp. LED Colours
8381.500.3200.L6 500 mm 24-27 10 6018 60 19,5 3200 °K White
8381.500.4000.L6 500 mm 24-27 10 6018 60 19,5 4000 °K White
8381.1000.3200.L6 1000 mm 24-27 19,5 6018 60 19,5 3200 °K White
8381.1000.4000.L6 1000 mm 24-27 19,5 6018 60 19,5 4000 °K White



8382 LED L2 Length VDC  WATT LED/m WATT/m Colours Temp. LED Colours
8382.500.3200.L2 500 mm 24 4,5  120 9,6 3200 °K White
8382.500.4000.L2 500 mm 24 4,5 120 9,6 4000 °K White
8382.1000.3200.L2 1000 mm 24 9,6 120 9,6 3200 °K White
8382.1000.4000.L2 1000 mm 24 9,6 120 9,6 4000 °K White
8382 LED L6 Length VDC  WATT DIMMER LED/m WATT/m Colours Temp. LED Colours
8382.500.3200.L6 500 mm 24-27 10  6018 60 19,5 3200 °K White
8382.500.4000.L6 500 mm 24-27 10 6018 60 19,5 4000 °K White
8382.1000.3200.L6 1000 mm 24-27 19,5 6018 60 19,5 3200 °K White
8382.1000.4000.L6 1000 mm 24-27 19,5 6018 60 19,5 4000 °K White

ON REQUEST:  Multiple lengths of 50mm (L2) or 100mm (L6) + 16mm for Art.8380 + 64mm for Art.8381 + 64mm pour Art.8382.

8380DWG

Accessories

View full details
