RIGHT LINE C

RIGHT LINE C

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

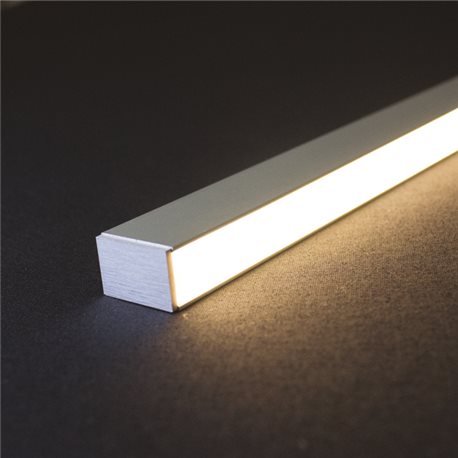

Aluminum profile LED

LED Colours:White

Cover:Opal

Data sheet

Aluminum profile LED Dim.18,5x13mm.

IP20_III_noINK2_INT

 EN62471 Photobiological risk group EN 62471

8770 8371 8372

8370-1
Simple cup

8371-1

Vertical mounting

8372-1

Horizontal mounting

Art.8371 - 8372 Cap cover screws included.

8370 LED L2 Length VDC  WATT LED/m WATT/m Colours Temp. LED Colours
8370.500.3200.L2 500 mm 24 4,5  120 9,6 3200 °K White
8370.500.4000.L2 500 mm 24 4,5 120 9,6 4000 °K White
8370.1000.3200.L2 1000 mm 24 9,6 120 9,6 3200 °K White
8370.1000.4000.L2 1000 mm 24 9,6 120 9,6 4000 °K White
8370 LED L5 Length VDC  WATT DIMMER LED/m WATT/m Colours Temp. LED Colours
8370.500.3200.L5 500 mm 24-27 6,5  6018 175 13 3200 °K White
8370.500.4000.L5 500 mm 24-27 6,5 6018 175 13 4000 °K White
8370.1000.3200.L5 1000 mm 24-27 13 6018 175 13 3200 °K White
8370.1000.4000.L5 1000 mm 24-27 13 6018 175 13 4000 °K White



8371 LED L2 Length VDC  WATT LED/m WATT/m Colours Temp. LED Colours
8371.500.3200.L2 500 mm 24 4,5  120 9,6 3200 °K White
8371.500.4000.L2 500 mm 24 4,5 120 9,6 4000 °K White
8371.1000.3200.L2 1000 mm 24 9,6 120 9,6 3200 °K White
8371.1000.4000.L2 1000 mm 24 9,6 120 9,6 4000 °K White
8371 LED L5 Length VDC  WATT DIMMER LED/m WATT/m Colours Temp. LED Colours
8371.500.3200.L5 500 mm 24-27 6,5  6018 175 13 3200 °K White
8371.500.4000.L5 500 mm 24-27 6,5 6018 175 13 4000 °K White
8371.1000.3200.L5 1000 mm 24-27 13 6018 175 13 3200 °K White
8371.1000.4000.L5 1000 mm 24-27 13 6018 175 13 4000 °K White



8372 LED L2 Length VDC  WATT LED/m WATT/m Colours Temp. LED Colours
8372.500.3200.L2 500 mm 24 4,5  120 9,6 3200 °K White
8372.500.4000.L2 500 mm 24 4,5 120 9,6 4000 °K White
8372.1000.3200.L2 1000 mm 24 9,6 120 9,6 3200 °K White
8372.1000.4000.L2 1000 mm 24 9,6 120 9,6 4000 °K White
8372 LED L5 Length VDC  WATT DIMMER LED/m WATT/m Colours Temp. LED Colours
8372.500.3200.L5 500 mm 24-27 6,5  6018 175 13 3200 °K White
8372.500.4000.L5 500 mm 24-27 6,5 6018 175 13 4000 °K White
8372.1000.3200.L5 1000 mm 24-27 13 6018 175 13 3200 °K White
8372.1000.4000.L5 1000 mm 24-27 13 6018 175 13 4000 °K White

ON REQUEST:  Multiple lengths of 50mm (L2) or 38,6mm (L5) + 11mm for Art.8370 + 30mm for Art.8371 and Art.8372.

8370dwg

Accessories

View full details
