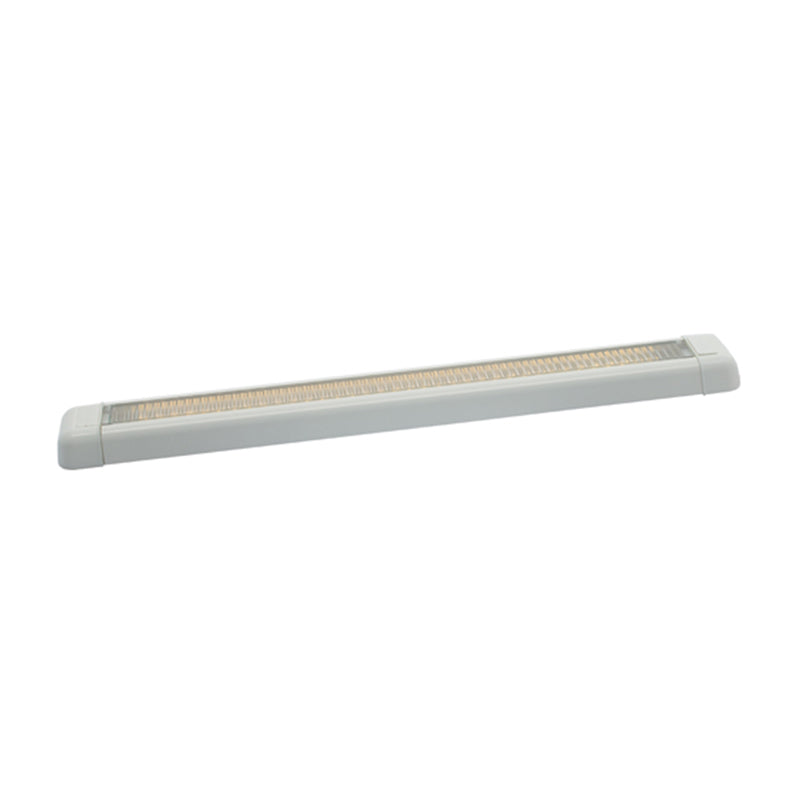

Resolux 805, 24VDC, White, Warm white LED
Resolux 805, 24VDC, White, Warm white LED
Regular price
$96.96 USD
Regular price
Sale price
$96.96 USD
Unit price
/
per
Shipping calculated at checkout.
The Resolux 805 surface-mount linear LED fixture is the ideal solution for upgrading older fluorescent fixtures with the latest power saving technology.
Feature
- Aluminum housing with impact resistant ABS end caps
- Wide beam angle
- No recessed depth requirements
- Maintenance free: No bulbs to change
- Low power consumption
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | Die cast anodized aluminum |
| Output Color | Warm White |
| Lifetime Hours | 35,000 hrs |
| Halogen Equivalency | 30W |
| Input Voltage | 24VDC |
| Input Voltage Range | 12V |
| Dimensions | 13.8 x 1.93 x 0.60" (350.6 x 49 x 15.3mm) |
| Finish | White |
| Warranty | 3 Years |
| Power Consumption | 7.0W |
| Materials | End Cap: White ABS |
| Light Technology | LED |
| Mounting Method | Surface-mount (with screws) |
| Beam Angle | 90°+ |
| Luminous Flux | 459 lm |
| Electrical Protections | Reverse Polarity |
| Correlated Color Temperature (CCT) | 3000K |
| Color Rendering Index (CRI) | >85 |
| Ingress Protection Rating (IP) | IP65+ |
| Approximate Ship Weight (lbs) | 2 |
