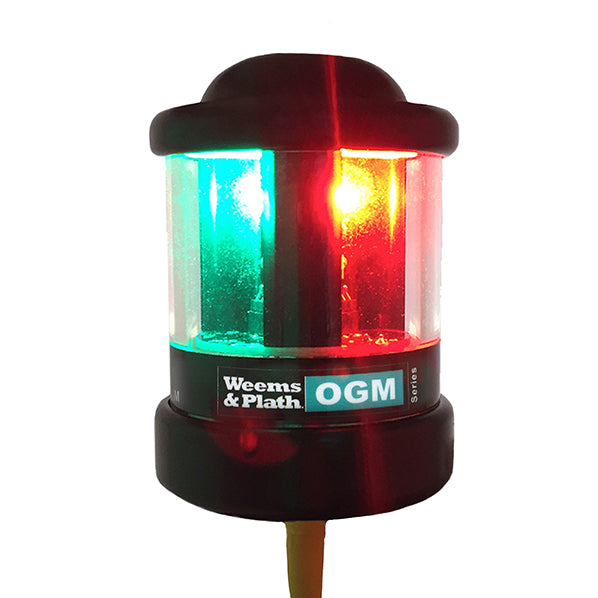

Q TriColor/Anchor LED Nav Light in Black Housing

The Q Collection’s TriColor/Anchor LED Navigation Light is waterproof, exceeds 2 nautical miles of visibility and uses 5 times less power than comparable incandescent lights. Like those in the LX Collection, this light is made using solid aluminum construction and a cast acrylic lens to make it last for years without yellowing. O-rings at the top, bottom, and middle of the light ensure a tight, waterproof enclosure. Easy to install and certified for use on sailing vessels up to 65 feet in length.

New to the Weems & Plath OGM Series, the Q Collection is the next generation of LED Navigation lights and incorporates the latest LED technology using a modular, modern design. All Q Collection lights are upgradeable, more efficient, and 20-30% brighter than LX Collection lights.

Includes a waterproof, quick-disconnect plug with 6-foot mating cable assembly featuring a PVC jacket. Mounting brackets optional.

Click here to take a look at how this light compares to other Q Collection lights.

• Visibility: 2+NM
• Voltage Range: 4-48V DC
• Current Draw: 0.39 Amps at 12V DC for TriColor; 0.28 Amps at 12V DC for Anchor
• Power Consumption: 4.5 Watts
• Horizontal Viewing Angle: 112.5°/ea for Port and Starboard (225° total); 135° for Stern; 360° for Anchor
• Vertical Viewing Angle: +/- 36°
• Wiring: 3-pin waterproof, quick-disconnect plug with 6-foot mating cable (3-wire)
• Housing Color: Black
• Certification: USCG 2NM, ABYC-A16, COLREGS '72
• Construction: Solid Aluminum, UV Resistant Cast Acrylic
• Made in the USA
• Limited LIFETIME Warranty (effective 04/24/2019)

Use #QBRKT-T2 2" Top Mount Bracket or #QBRKT-T4 4" Mount Bracket for mounting.

Dimensions: 2" (5 cm) Diameter x 3" (7.6 cm) Height

Weight: 0.5 lb (0.22 kg)
