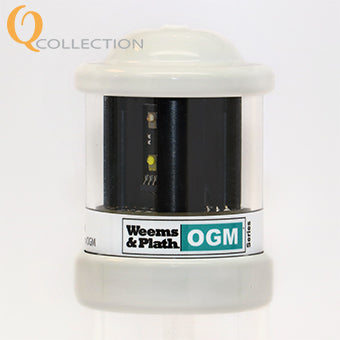

Q All Around (WHITE) LED Nav Light with Photodiode in White

The Q Collection’s All Around (WHITE) LED Navigation Light is waterproof, exceeds 2 nautical miles of visibility and uses 5 times less power than comparable incandescent lights. Like those in the LX Collection, this light is made using solid aluminum construction and cast acrylic lens to make it last for years without yellowing. O-rings at the top, bottom, and middle of the light ensure a tight, waterproof enclosure. Additionally, the photodiode automatically turns the light on at dusk and off at dawn.* Easy to install and certified for use on power or sailing vessels up to 164 feet in length.

New to the Weems & Plath OGM Series, the Q Collection is the next generation of LED Navigation lights and incorporates the latest LED technology using a modular, modern design. All Q Collection lights are upgradeable, more efficient, and 20-30% brighter than LX Collection lights.

Includes a waterproof, quick-disconnect plug with 6-foot mating cable assembly featuring a PVC jacket. Mounting brackets optional.

• Visibility: 2+NM
• Voltage Range: 4-48V DC
• Current Draw: 0.28 Amps at 12V DC
• Power Consumption: 3.4 Watts
• Horizontal Viewing Angle: 360°
• Vertical Viewing Angle: +/- 36°
• Wiring: 3-pin waterproof, quick-disconnect plug with 6-foot mating cable (3 wire)
• Housing Color: White
• Certifications: USCG 2NM, ABYC-A16, COLREGS '72
• Construction: Solid Aluminum, UV Resistant Cast Acrylic
• Made in the USA
• Limited LIFETIME Warranty (effective 04/24/2019)

Dimensions: 2" (5 cm) Diameter x 3" (7.6 cm) Height

Weight: 0.5 lb (0.22 kg)

Use #QBRKT-T2 2" Top Mount Bracket or #QBRKT-T4 4" Mount Bracket for mounting.

*OGM Series lights that have a photodiode option will blink twice and then go off in ambient light. This is normal operation.
