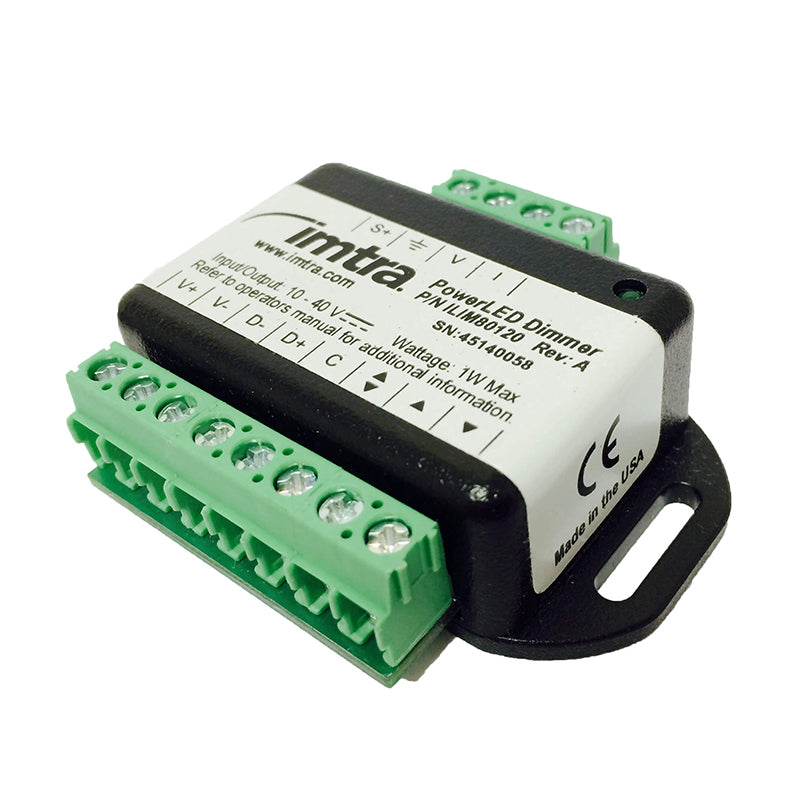

PWM Dimmer, Universal Input (analog/digital), 10-40VDC, Max 30 Units, Momentary Operated
PWM Dimmer, Universal Input (analog/digital), 10-40VDC, Max 30 Units, Momentary Operated
Regular price
$112.00 USD
Regular price
Sale price
$112.00 USD
Unit price
/
per
Shipping calculated at checkout.
Imtra’s model ILIM80120 LED Dimmer Module provides dimming for all IMtra's 4-wire (single color) and 5-wire (bi-color)
Feature
- Digital PWM output compatible with all Imtra PowerLEDs (including Captiva)
- Analog input: 0-10V Sink, 0-10V Sink/Source, 4-20mA, and 10KΩ-100KΩ Potentiometer
- Space-saving compact design
- Easy to identify input/output wire terminals
- Works with Single or Double Throw Momentary Switches
- Dipswitches for customized functions
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | Black flame retardant ABS (UL94V-0) |
| Certifications & Compliance | CE |
| Class | Class III |
| Dimmer Compatibility | 4/5-wire Imtra PowerLEDs (& Captiva) |
| Dimmer Control Interface | Single or Double Throw NO Momentary Push-buttons (Multiple, wired in parallel) |
| Input Voltage | 10-30VDC |
| Dimensions | 0.80" (20mm) H x 2.66" (68mm) W x 2.08" (53mm) Depth |
| Power Consumption | 1W Max |
| Base Dimensions | 2.66" (68mm) x 2.08" (53mm) |
| Ingress Protection | IP40 |
| Load Rating | 30 PowerLED fixtures (different wattages) |
| Mounting Method | Screw-mount |
| Approximate Ship Weight (lbs) | 1 |
Downloads:
Product Catalog
Compatibility Chart
Installation Instructions
Dimensional Drawing
