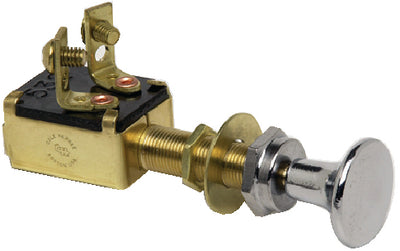

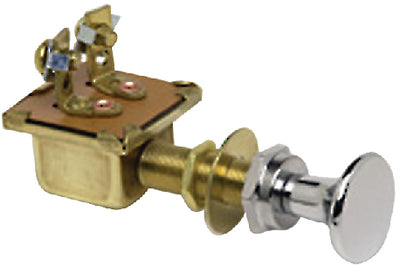

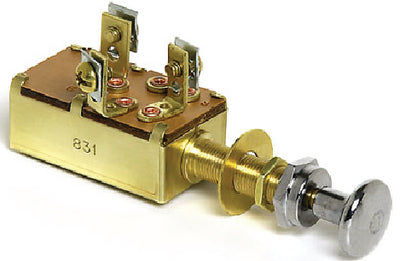

2 circuits. Normally off. 3 positions: Off - On #1 - On #1 & #2. Knob face dia.:3/4". Ideal for control of lighting circuits such as cabin and running lights. Features non-corrosive construction. Gasket sealed case protects against moisture and dust. Brass mounting stem: 3/8" -32 x 1-1/4"L complete with chrome plated brass knob & face nut, washer, and hex nut for mounting. Mount in panels up to 1" thick. Rating 10A @ 12VDC. 6-36VDC. Brass housing. Carded.,1 circuit. Normally off. 2 positions: Off/On. Features non-corrosive construction. Gasket sealed case protects against moisture and dust. Brass mounting stem: 3/8" -32 x 1-1/4"L complete with chrome plated brass knob & face nut, washer, and hex nut for mounting. Mount in panels up to 1" thick. Rating 10A @ 12VDC. 6-36VDC. Brass housing. Boxed.,One circuit switch. Normally off. Two positions: off/on. S.P.S.T. Plasticized body sealed against moisture and dirt. Two 18 gauge insulated copper wire leads, 12" long. Mounting stem is 3/8" diameter and is complete with chrome plated brass knob and face nut. Knob face diameter is 7/8". Mounts in panels up to 5/8" thick. Rating 10A @ 12VDC, 6-36VDC. Boxed.
