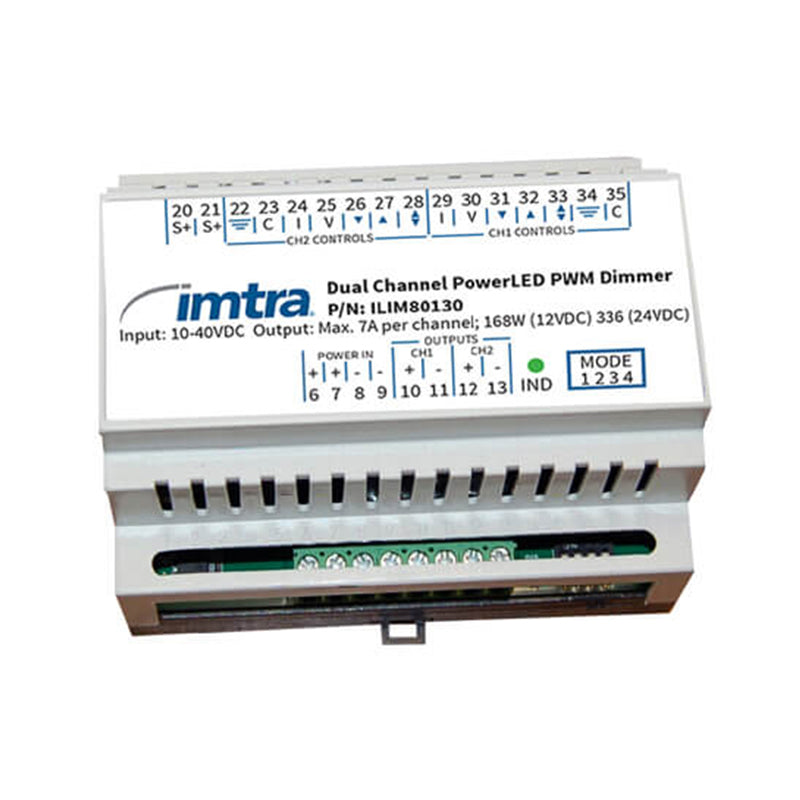

PowerLED Dimming Control Module, 2-Channel 10-40VDC, 7A x 2 (14A combined), IP40
PowerLED Dimming Control Module, 2-Channel 10-40VDC, 7A x 2 (14A combined), IP40
Regular price
$281.88 USD
Regular price
Sale price
$281.88 USD
Unit price
/
per
Shipping calculated at checkout.
This 2-Channel Dimmer Module provides dimming for “PWM Enabled” 2-wire Imtra PowerLED Downlights and supports a broad range of lighting configurations and control methods.
Feature
- Provides smooth dimming control to Imtra 2-wire PowerLEDs
- Supports bi-color dimming with a single momentary switch
- Operates two zones independently or in unison (paired mode)
- Supports 4-20mA analog input (from external control system)
- Supports 0-10V potentioneter control (100k ohm)
- Supports 0-10V analog input (from external control system)
- Mounts with supplied brackets (or with 35mm DIN rail)
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | White/PC |
| Certifications & Compliance | CE, ROHS |
| Dimmer Control Interface | NO momentary, 0-10V analog external, 0-10V potentiometer, 4-20mA external |
| Input Voltage | 10-30VDC |
| Dimensions | 4.13" l x 3.39" w x 2.32"h |
| Warranty | 2 Years |
| Ingress Protection | IP40 (applies only to frontal water exposure, i.e. exposed surface) |
| Load Rating | Up to 7A per channel (14A total)* : Single Color Up to 2A per channel (4A total)* : Bi-Color |
| Max Operating Temperature | 49°C (120°F) |
| Install Location | Dry location |
| Approximate Ship Weight (lbs) | 1 |
