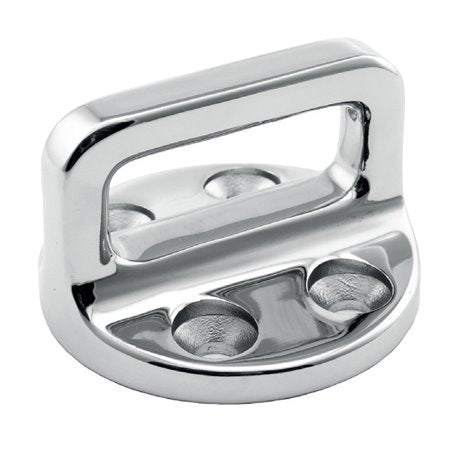

Padeyes
Padeyes
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Shipping calculated at checkout.
Stainless steel fairleads
Finish :.I Stainless Steel
Data sheet
n° 4 fixing screws
| Type | Material |
A |
B |
C |
D |
E |
F |
G |
H |
I |
Weight (g) |
| 9550A.I | Stainless steel AISI 316L | 60 | 44 | 15 | 10 | 8 | 38 | 26 | 37 | N°4 viti svasata M6 | 135 |
| 9550B.I | Stainless steel AISI 316L | 77 | 55 | 20 | 12 | 11 | 48,5 | 30 | 44 | N°4 viti svasata M8 | 235 |
| 9550C.I | Stainless steel AISI 316L | 95 | 68 | 27 | 13,5 | 13,5 | 60 | 40 | 54 | N°4 viti svasata M10 | 560 |
F1 (90°) |
F2 (45°) |
F3 |
|||||
| Type | Material |
Breaking load (kg) |
Working load S=2(kg) |
Breaking load (kg) |
Working load S=2(kg) |
Breaking load (kg) |
Working load S=2(kg) |
| 9550A.I | Stainless steel AISI 316L | 5500 | 2750 | 5400 | 2700 | 4500 | 2250 |
| 9550B.I | Stainless steel AISI 316L | 7100 | 3550 | 9600 | 4800 | 7100 | 3550 |
| 9550C.I | Stainless steel AISI 316L | 13600 | 6800 | 13500 | 6750 | 1300 | 6500 |
