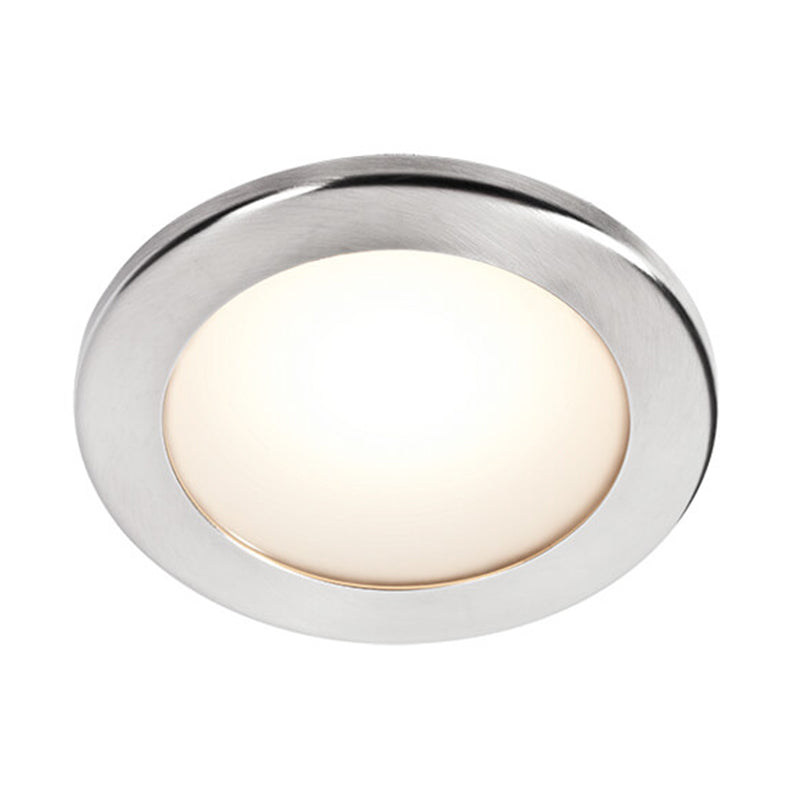

ORLANDO 85 POL SS 4W SCR MNT, 3000K, 8-32V, IP66
ORLANDO 85 POL SS 4W SCR MNT, 3000K, 8-32V, IP66
Regular price
$53.37 USD
Regular price
Sale price
$53.37 USD
Unit price
/
per
Shipping calculated at checkout.
BCM downlight fixtures are specifically designed for marine lighting applications. The downlights in this range are all offered in a 3000K warm white LED color and several sizes and finishes within each family.
| Name | Description |
|---|---|
| Certifications & Compliance | CE, EMC, RoHS, REACH |
| Output Color | Warm White |
| Lifetime Hours | 50,000 hrs |
| Class | Class III |
| Dimmer Compatibility | DMS |
| Cut-out Dimensions | 65mm (2.56in) |
| Trim Ring (Bezel) Dimensions | 85mm (3.35in) dia |
| Light Size | 3.35" |
| Input Voltage | 8-32 VDC |
| Input Voltage | 8-32 VDC |
| Finish | Polished Stainless Steel |
| Recessed Depth | 0.98" (25mm) |
| Lens Material | Frosted glass |
| Max Wattage | 4.0W |
| Mounting Method | Screws |
| Light Technology | LED |
| Luminous Flux | 323 lms |
| Electrical Protections | Reverse Polarity, Transient & Spike Protection |
| Correlated Color Temperature (CCT) | 3000K |
| Color Rendering Index (CRI) | >80 |
| Ingress Protection Rating (IP) | IP65+ |
| Approximate Ship Weight (lbs) | 1 |
Downloads:
Owner's Manual
Product Sheet
