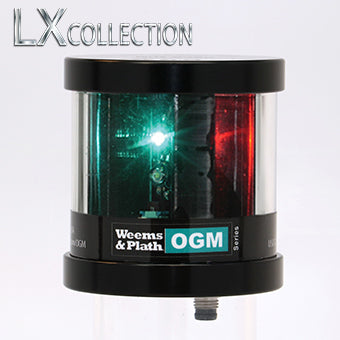

LX TriColor/Anchor LED Nav Light with Photodiode and Strobe

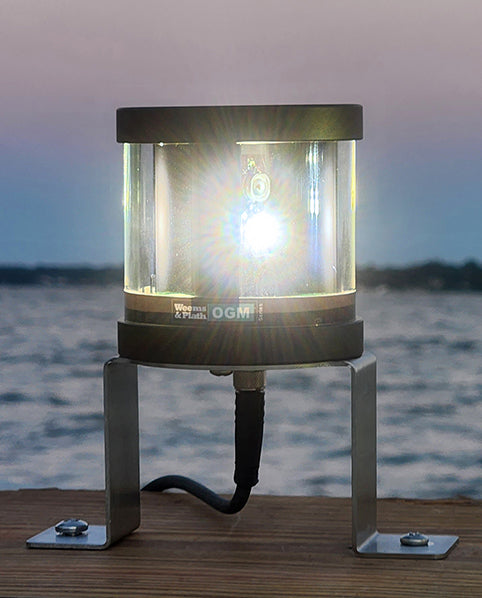

This LED TriColor/Anchor combination light is not only ocean-test, rugged and waterproof, but it also includes a strobe option, which converts the light from a solid anchor (WHITE) color to strobe on/off for emergencies. Additionally, the photodiode automatically turns the light on at dusk and off at dawn.* The light exceeds 2 nautical miles of visibility and uses 5 times less power than comparable incandescents! Certified for sailing vessels that are up to 65 feet in length.

U.S. Coast Guard approved and used by the USCG and on board other military vessels since 2004. The LX Collection of Weems & Plath OGM LED Navigation Lights was the first in the world to be USCG approved and has set the standard for all others to follow.

Includes a waterproof, quick-disconnect plug with 3-foot mating cable. Mounting Bracket and Selector Switch sold separately.

Click here to take a look at how this light compares to other LX Collection lights.

• Visibility: 2+NM
• Voltage Range: 9-30V DC
• Current Draw: ≤ 0.33 Amps at 12V DC
• Power Consumption: 4 Watts
• Horizontal Viewing Angle: 112.5°/ea for Port and Starboard (225° total); 360° for Anchor
• Vertical Viewing Angle: +/- 36°
• Wiring: 3-pin waterproof, quick-disconnect plug with 3-foot mating cable (included)
• Certifications: USCG 2NM, ABYC-A16, COLREGS '72
• Construction: Military Spec Anodized Aluminum, UV Resistant Cast Acrylic
• Made in the USA
• Limited LIFETIME Warranty (effective 04/24/2019)

Use bracket #LXBRKT-01 (LX Angle Mount Bracket) or #LXBRKT-02 (LX Top Mount Bracket) for mounting.

*OGM Series lights that have a photodiode option will blink twice and then go off in ambient light. This is normal operation.

Dimensions: 2.75" (7 cm) Diameter x 2.75" (7 cm) Height

Weight: 0.60 lb (0.27 kg)
