LED Converter; 90-302VAC to 24VDC, 600W
LED Converter; 90-302VAC to 24VDC, 600W
Regular price
$522.42 USD
Regular price
Sale price
$522.42 USD
Unit price
/
per
Shipping calculated at checkout.

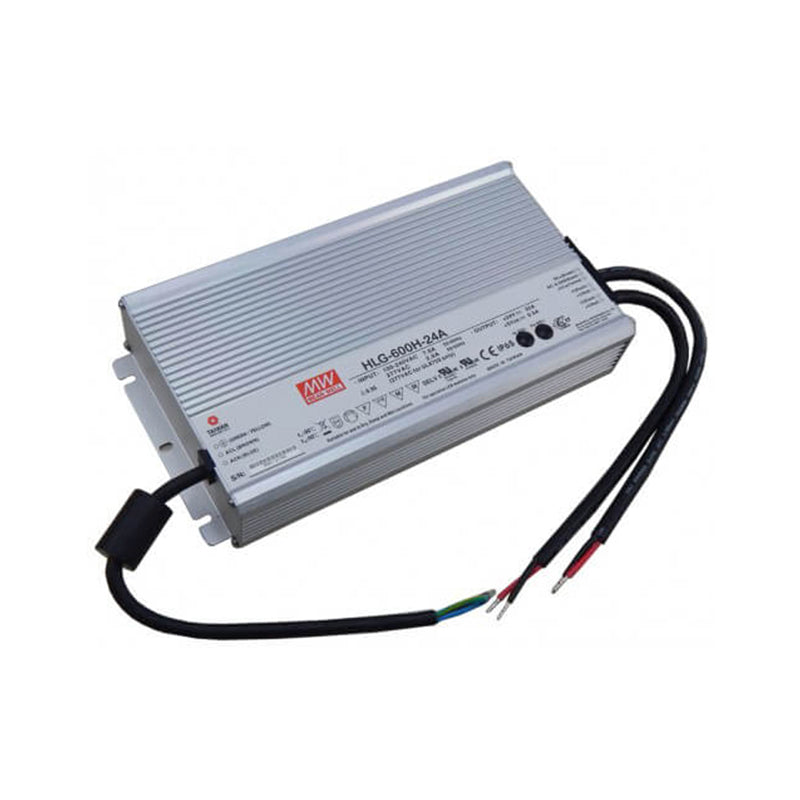

Our highest capacity Power Supply (i.e. LED voltage converter), the HLG-600 Single Output Switching Power Supply is a high-performance dustproof and waterproof AC-to-DC LED power supply for loads up to 600W.
Feature
- Selectable AC input (90~305VAC)
- Adjustable voltage output (20.4~25.2V)
- Adjustable current output (12.5~25A)
- Shock & vibration resistant to 5Gs
- 95% efficiency rating
- Standby power consumption <0.5W at remote off
- Typical lifetime > 62,000 hrs
- Full electrical protections (current, voltage, temperature)
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | Aluminum |
| Certifications & Compliance | CE-EMC, UL, CSA, ENEC |
| Lifetime Hours | >62,000 hours |
| Class | Class I |
| Dimmer Compatibility | Non-Dimmable |
| Warranty | 7 Years |
| Dimensions | 144mm x 48.5mm x 28mm |
| Power Consumption | Stand by <0.5W |
| Mounting Method | Panel |
| Max Operating Temperature | +70°C |
| Efficiency | 95% |
| Install Location | Interior/Exterior |
| Electrical Protections | Over current, short circuit, over voltage, over temperature |
| Ingress Protection Rating (IP) | IP65+ |
| Approximate Ship Weight (lbs) | 9 |
