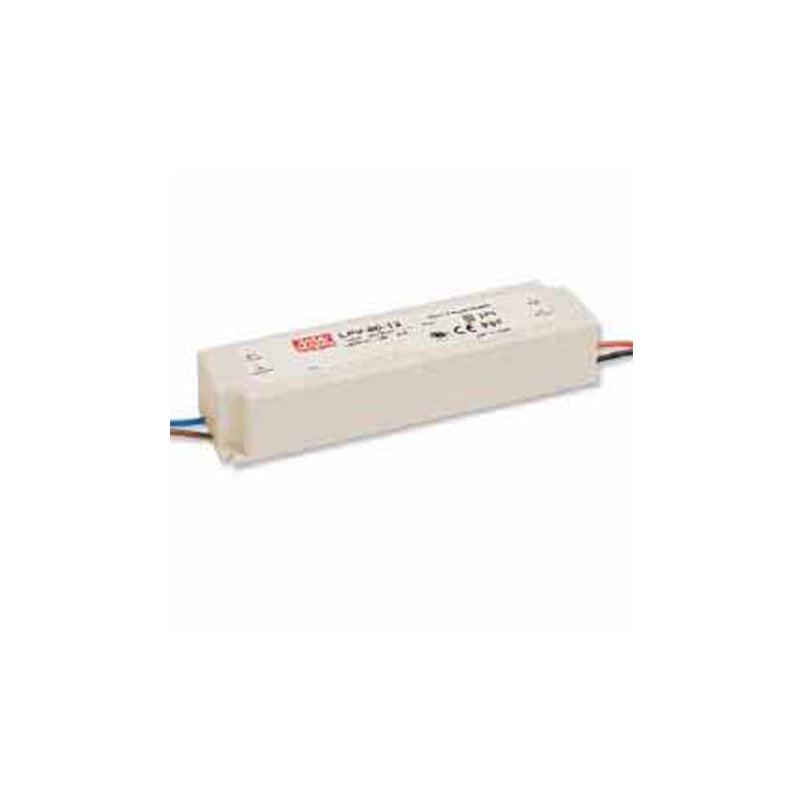

LED Converter: 90-264VAC to 24VDC, 100W
LED Converter: 90-264VAC to 24VDC, 100W
Regular price
$123.27 USD
Regular price
Sale price
$123.27 USD
Unit price
/
per
Shipping calculated at checkout.
This LED Converter is a voltage-regulated AC to DC power supply. It features short circuit protection, over-voltage and overload protection.
Feature
- Universal supply voltage: 90-264V 47/63Hz
- Constant current control
- Power factor correction
- Fully isolated IP67 plastic case
Specifications
| Name | Description |
|---|---|
| Certifications & Compliance | CE, UL8750 + UL879 Class 2 Wet Locations |
| Dimensions | 7.48 x 2.04 x 1.45 in. (190 x 52 x 37 mm) |
| Input Voltage | 90-264VAC (47-63Hz) |
| Power Capacity | 100W |
| Output voltage | 24VDC |
| Max Operating Temperature | 122° F (50° C) |
| Max Housing Temperature | 158 dg. F (70 dg. C) |
| Electrical Protections | Short Circuit, Over Current, Over Voltage |
| Install Location | Within 30' of last light fixture |
| Approximate Ship Weight (lbs) | 1 |
