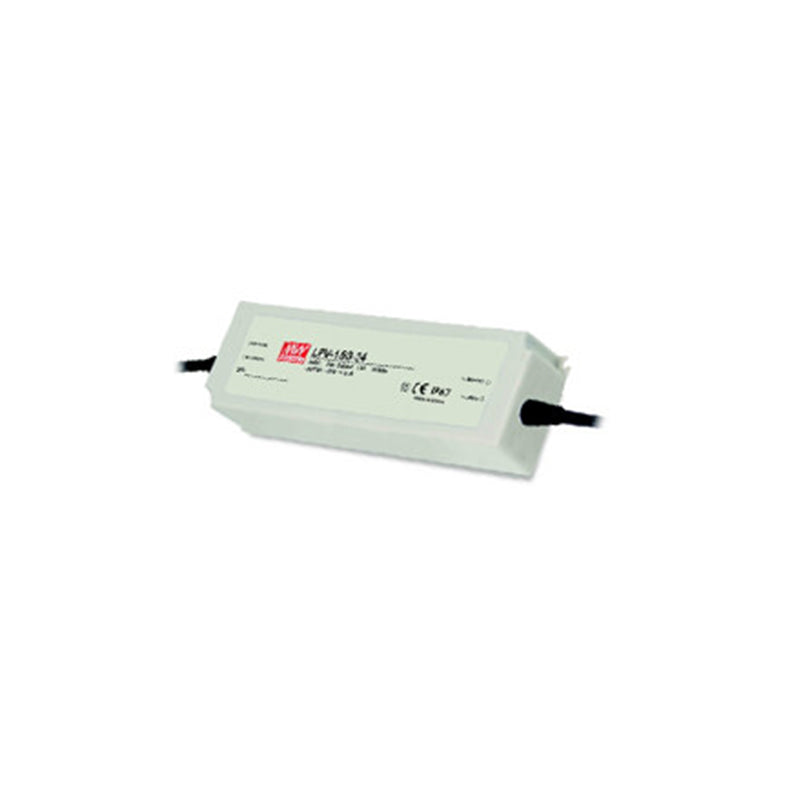

LED Converter: 90-132VAC to 12VDC, 150W
LED Converter: 90-132VAC to 12VDC, 150W
Regular price
$141.31 USD
Regular price
Sale price
$141.31 USD
Unit price
/
per
Shipping calculated at checkout.
This LED Converter features universal AC input (90-264VAC) and delivers steady voltage-regulated 12V DC power; ideal for sensitive electronics and LED lighting.
Feature
- Universal Supply Voltage: 90-132VAC (47-63Hz)
- Voltage Regulation Prevents damaging voltage spikes
- Short Circuit & Over-Current Protection with Auto Reset
- Over Temperature Protection with Auto Reset
- Compliant to Worldwide Safety Regulations
- Fully Isolated IP67 Water-Proof Housing
Specifications
| Name | Description |
|---|---|
| Certifications & Compliance | FCC Class B/EN 55032/61000 |
| Class | CE, UL8750 Class 2 Wet Locations |
| Input Voltage | 90-132VAC |
| Dimensions | 7.51 x 2.48 x 1.47 in. (191 x 63 x 37.5 mm) |
| Warranty | 3 Years |
| Power Capacity | 150W |
| Output voltage | 12VDC |
| Ingress Protection | IP67 |
| Max Operating Temperature | 122° F (50° C) |
| Operating Frequency | 47-63Hz |
| Max Housing Temperature | 149° F (65° C) |
| Electrical Protections | Short Circuit, Over Current, Over Voltage, Thermal |
| Install Location | Within 30' of last light fixture |
| Approximate Ship Weight (lbs) | 1 |
Downloads:
Product Catalog
Specifications
