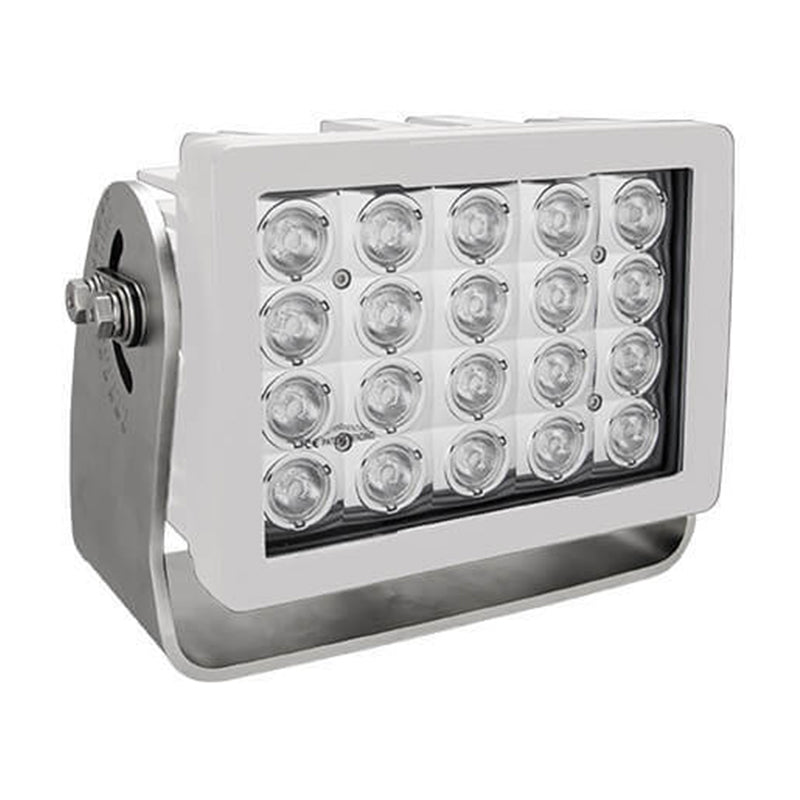

Imtra Offshore 20-LED Marine Deck Light 11-65VDC, 140W, 60°, White Finish, IP68/69K
Imtra Offshore 20-LED Marine Deck Light 11-65VDC, 140W, 60°, White Finish, IP68/69K
Regular price
$1,113.74 USD
Regular price
$1,371.60 USD
Sale price
$1,113.74 USD
Unit price
/
per
Shipping calculated at checkout.
In collaboration with the Vision X engineering team, the Imtra Offshore Series Marine LED Deck Lights are specifically designed with the extra protections required to survive life on the open ocean.
Feature
- Anodized low copper die-cast aluminum housing
- Marine grade hydrophobic gloss powder coating
- Impact & UV resistant PCB lens
- Electronic thermal management system
- Vibration dampened & shock proof: 60 Grams
- Upgraded 304 S.S. trunnion bracket with graduated aiming marks
- Supplied with 6’ x 16awg duplex boat cable
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | White/Anodized Die-Cast Aluminum |
| Certifications & Compliance | CE, ROHS, IEC 6247 |
| Input Voltage | 11-65VDC |
| Warranty | 5 years |
| Power Consumption | 140W (7W per LED) |
| Lens Material | Polycarbonate |
| Bracket | 304 Stainless Steel |
| Ingress Protection | IP68/IP69K |
| Light Technology | LED |
| Beam Angle | 60-90° |
| Luminous Flux | 17,600 (raw) 11,270 (effective) |
| Protection | CISPR 25 - Class 1 |
| Correlated Color Temperature (CCT) | 5700K |
| Ingress Protection Rating (IP) | IP65+ |
| Approximate Ship Weight (lbs) | 13 |
Downloads:
Product Catalog
Product Sheet
Dimensional Drawing
Product Sheet
Installation Instructions
Product Sheet
