HITCH, SWAYPRO, 1,500 LB, UNDERSLUNG, CLAMP

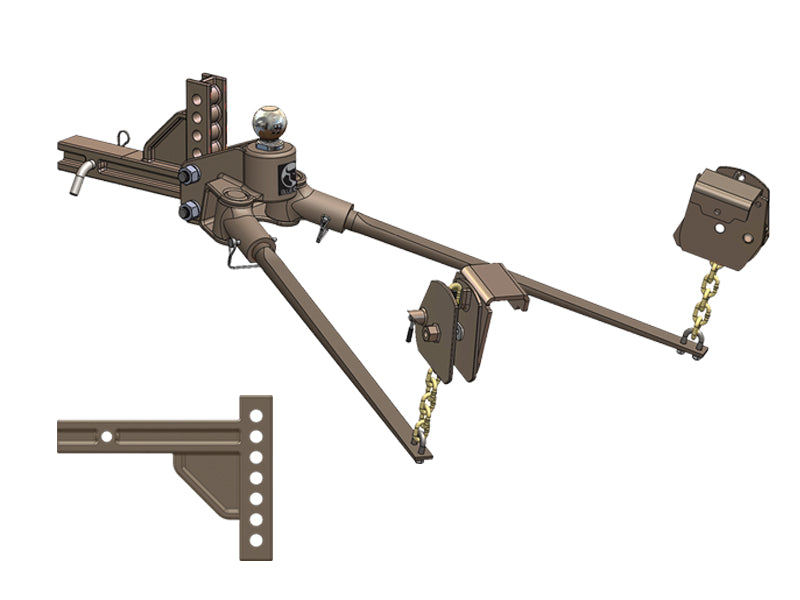

The BXW1503 includes the underslung coupler hitch head, 2″ shank with a 7 Hole/7″ receiver stinger, clamp-on brackets, and spring bars rated for 1500 lbs. tongue weight, for trailers with underslung couplers.

Features:

• Evenly distributes weight over axles of the tow vehicle and trailer

• Noise-free sway prevention never stops working, even in rain or snow

• Caster in the hitch head constantly centers the trailer

• Spring bars augment the suspensions of the tow vehicle & trailer

• Rotating latches with bolt-on brackets for quick and easy setup

• Powder-coated steel construction

If your trailer has a coupler that is welded to the top of the frame, and your trailer does not have cross-members on the tongue or equipment blocking, this SwayPro™ model will work for you.

Use a tongue scale to determine your tongue weight after your trailer
is fully loaded.

Specifications:

Tongue weights available: 350, 550, 750, 1000, 1500 & 2000lbs

Gross Towing Weight 20K maximum

2” receiver

Installation Instruction: Download Manual
