F4 TouchLED, 20" (500mm), Black, 10-30VDC Bulkhead Mount

F4 TouchLED, 20" (500mm), Black, 10-30VDC Bulkhead Mount

$169.13 USD
$169.13 USD
Sale Sold out
Shipping calculated at checkout.

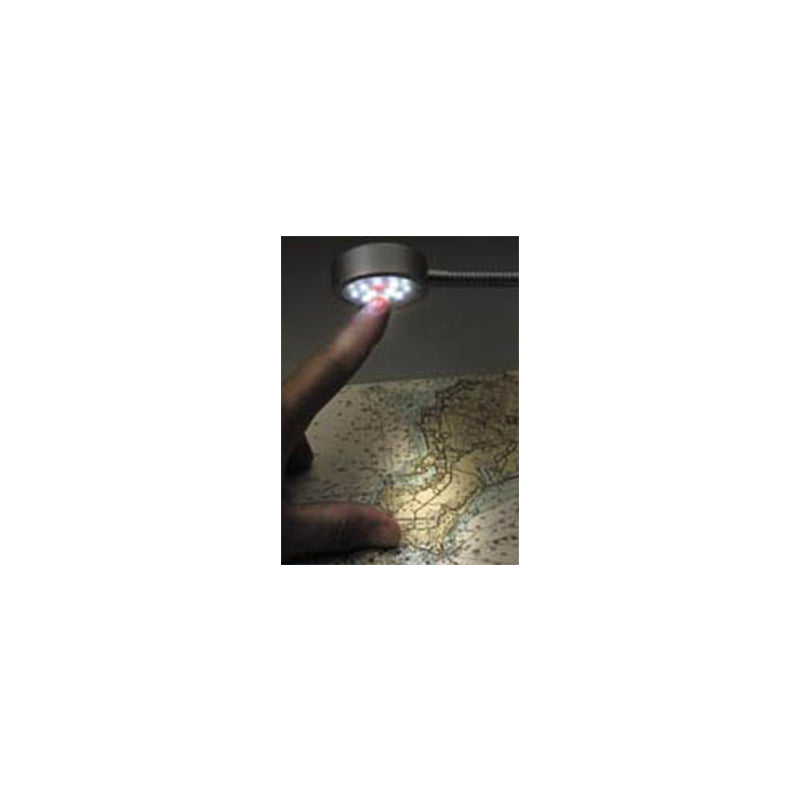

Featuring a flexible umbilical (gooseneck) design, the F4 TouchLED boat light is turned on and off by silent touch activation.

Feature

  • Flat vertical base for bulkhead mounting
  • No mechanical switches - touch activation
  • Programmable "red" Auto Night-light function
  • Nighttime locator light
  • Current regulated LED driver
  • Flexible gooseneck design (2 lengths available)
  • Ideal as Chart Light or Reading Task Light

Specifications

Name Description
Certifications & Compliance CE-EMC
Integrated Switch Yes, Photo-sensor "TouchLED"
Output Color Cool/Red
Lifetime Hours 30,000 hrs (L70)
Dimmer Compatibility Special Order
Shade/Globe Diameter (opening) 1.97" (50mm)
Input Voltage 10-30VDC
Input Voltage- 24V
Finish Black
Warranty 3 Years
Power Consumption On (All LEDs On): 150mA; Off (Red LED in stand-by mode): 10mA; Nightlight (Red LED full On): 20mA
Materials Stainless Steel, Aluminum, Electro-Plated Steel
Base Dimensions 1.36"/34.5mm
Mounting Method Screws
Light Technology LED
Beam Angle 0-45°
Arm Length 19.69" (500mm)
Luminous Flux 80 lms
Switch Touch Sensitive
Electrical Protections Reverse Polarity, Surge Protection
Correlated Color Temperature (CCT) 8200K
Ingress Protection Rating (IP) IP20-IP55
Approximate Ship Weight (lbs) 1

Downloads:
Operation Instructions
Product Catalog
Product Catalog
Dimensional Drawing
Product Sheet
