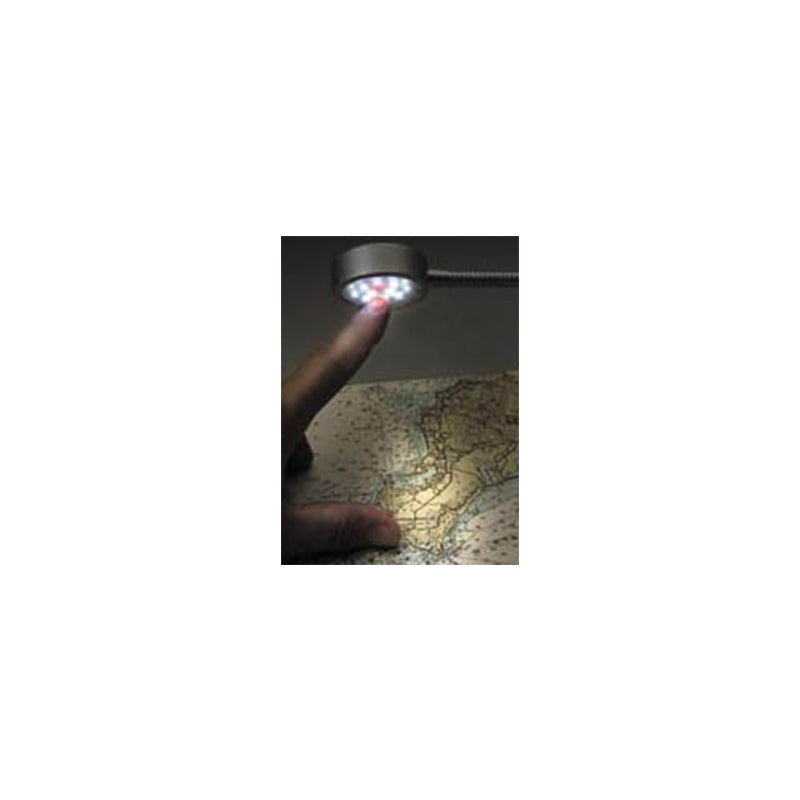

F4 TouchLED, 12" (300mm), Black, 10-30VDC Table/Dash Mount
F4 TouchLED, 12" (300mm), Black, 10-30VDC Table/Dash Mount
Regular price
$161.61 USD
Regular price
Sale price
$161.61 USD
Unit price
/
per
Shipping calculated at checkout.
Featuring a flexible umbilical (gooseneck) design, the F4 TouchLED boat light is turned on and off by silent touch activation.
Feature
- Flat horizontal base for table/dash mounting
- No mechanical switches - touch activation
- Programmable "red" Auto Night-light function
- Nighttime locator light
- Current regulated LED driver
- Flexible gooseneck design (2 lengths available)
- Ideal as Chart Light or Reading Task Light
Specifications
| Name | Description |
|---|---|
| Certifications & Compliance | CE-EMC |
| Integrated Switch | Yes, Photo-sensor "TouchLED" |
| Output Color | Cool/Red |
| Lifetime Hours | 30,000 hrs (L70) |
| Dimmer Compatibility | Special Order |
| Shade/Globe Diameter (opening) | 1.97" (50mm) |
| Input Voltage | 10-30VDC |
| Input Voltage- | 24V |
| Finish | Black |
| Warranty | 3 Years |
| Power Consumption | On (All LEDs On): 150mA; Off (Red LED in stand-by mode): 10mA; Nightlight (Red LED full On): 20mA |
| Materials | Stainless Steel, Aluminum, Electro-Plated Steel |
| Base Dimensions | 1.36"/34.5mm |
| Mounting Method | Screws |
| Light Technology | LED |
| Beam Angle | 0-45° |
| Arm Length | 11.81" (300mm) |
| Luminous Flux | 80 lms |
| Switch | Touch Sensitive |
| Electrical Protections | Reverse Polarity, Surge Protection |
| Correlated Color Temperature (CCT) | 8200K |
| Ingress Protection Rating (IP) | IP20-IP55 |
| Approximate Ship Weight (lbs) | 1 |
Downloads:
Operation Instructions
Product Catalog
Product Catalog
Dimensional Drawing
Product Sheet
