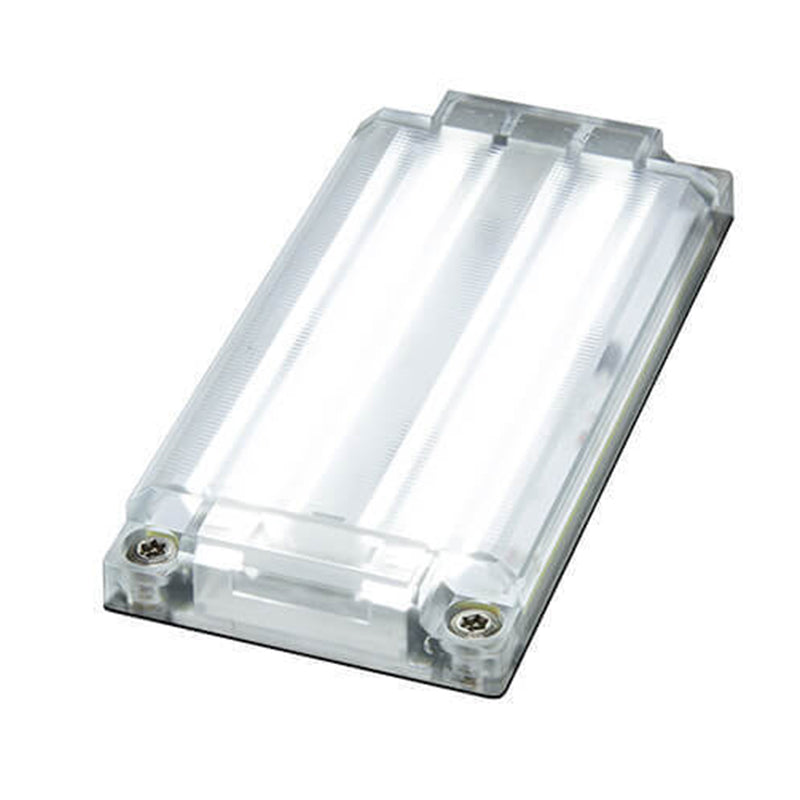

F-70 HD LED without switch, 10-30VDC, 5W Surface Mount Utility Light, IP67
F-70 HD LED without switch, 10-30VDC, 5W Surface Mount Utility Light, IP67
Regular price
$66.90 USD
Regular price
Sale price
$66.90 USD
Unit price
/
per
Shipping calculated at checkout.
The F-70 Heavy Duty LED Utility Light is an extremely efficient, super high output, compact surface-mounted fixture designed for environments prone to extreme water exposure, temperature extremes, and high shock loads/vibration.
Feature
- Completely impervious to water intrusion
- Impact-proof, UV stabilized PC construction
- Specially designed waterproof magnetic slide switch
- Convenient surface-mount design
- Glare-free high precision optics
- Dimmable using DMS-500/850 dimmers
- Extra long 3m marine grade duplex cable
- Stainless steel mounting screws provided
- Certified Ignition Protected – safe for gasoline engine compartments
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | Polycarbonate HT/Transparent |
| Certifications & Compliance | CE-EMC/EMV, ROHS, Ignition protection certified to USCG/ISO/SAE/NMMA standards |
| Integrated Switch | No |
| Output Color | Cool White |
| Lifetime Hours | 50,000 hrs |
| Class | Class III |
| Dimmer Compatibility | DMS-500/850 LED Dimmers |
| Dimmer Control Interface | Remote Momentary Push Button |
| Halogen Equivalency | 40W |
| Input Voltage | 10-30VDC |
| Input Voltage- | 24V |
| Pricing Units | ea |
| Dimensions | 4.72" (120mm) x 2.36" (60mm) x 0.59" (15mm) |
| Warranty | 2 Years |
| Power Consumption | 5.0W |
| Lens Material | Polycarbonate HT |
| Base Dimensions | 4.72" (120mm) x 2.36" (60mm) |
| Ingress Protection | IP67 |
| Mounting Method | Screw-mount (ss fasteners included) |
| Max Operating Temperature | 60°C |
| Dimming Range | 5-100% |
| Beam Angle | 60-90° |
| Luminous Flux | 400 lm |
| Driver | Integrated multi-voltage, current controlled |
| Install Location | Wet or dry, bulkhead or ceiling |
| Electrical Protections | Reverse Polarity, Transients, EMI |
| Correlated Color Temperature (CCT) | 5700K |
| Color Rendering Index (CRI) | 75 |
| Ingress Protection Rating (IP) | IP65+ |
