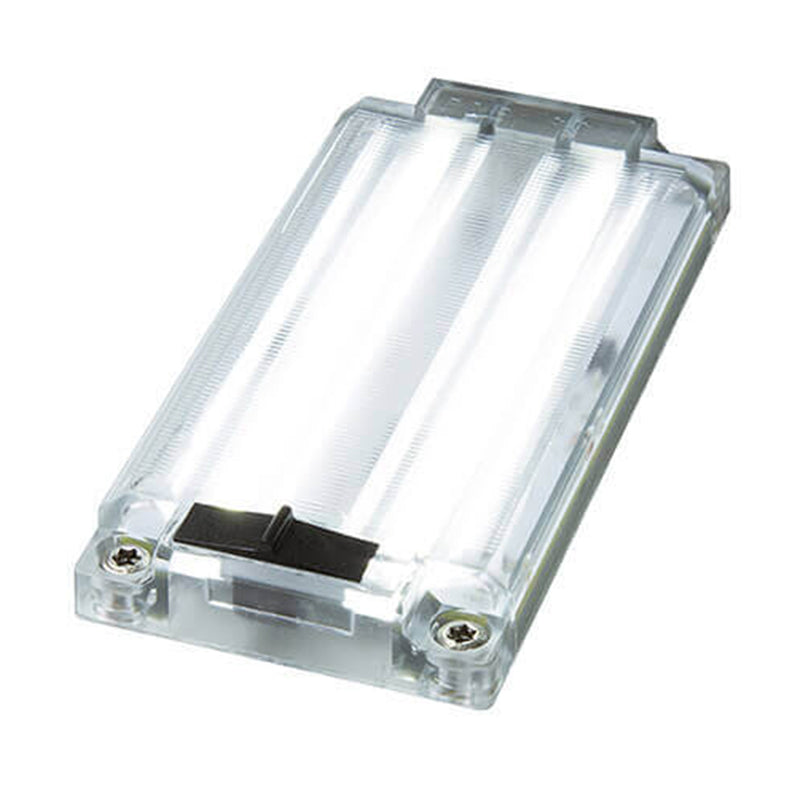

F-70 HD LED w/switch, 10-30VDC, 5W Surface Mount Utility Light, IP67

F-70 HD LED w/switch, 10-30VDC, 5W Surface Mount Utility Light, IP67

Regular price $73.66 USD
Regular price Sale price $73.66 USD
Sale Sold out
Shipping calculated at checkout.

The F-70 Heavy Duty LED Utility Light is an extremely efficient, super high output, compact surface-mounted fixture designed for environments prone to extreme water exposure, temperature extremes, and high shock loads/vibration.

Feature

  • Completely impervious to water intrusion
  • Impact-proof, UV stabilized PC construction
  • Specially designed waterproof magnetic slide switch
  • Convenient surface-mount design
  • Glare-free high precision optics
  • Dimmable using DMS-500/850 dimmers
  • Extra long 3m marine grade duplex cable
  • Stainless steel mounting screws provided
  • Certified Ignition Protected – safe for gasoline engine compartments

Specifications

Name Description
Housing Finish/Material Polycarbonate HT/Transparent
Certifications & Compliance CE-EMC/EMV, ROHS, Ignition protection certified to USCG/ISO/SAE/NMMA standards
Integrated Switch Yes (waterproof slide switch)
Output Color Cool White
Lifetime Hours 50,000 hrs
Class Class III
Dimmer Compatibility DMS-500/850 LED Dimmers
Dimmer Control Interface Remote Momentary Push Button
Halogen Equivalency 40W
Slide Switch Yes
Input Voltage 10-30VDC
Input Voltage- 24V
Pricing Units ea
Dimensions 4.72" (120mm) x 2.36" (60mm) x 0.59" (15mm)
Warranty 2 Years
Power Consumption 5.0W
Lens Material Polycarbonate HT
Base Dimensions 4.72" (120mm) x 2.36" (60mm)
Ingress Protection IP67
Mounting Method Screw-mount (ss fasteners included)
Max Operating Temperature 60°C
Dimming Range 5-100%
Beam Angle 60-90°
Luminous Flux 400 lm
Driver Integrated multi-voltage, current controlled
Install Location Wet or dry, bulkhead or ceiling
Electrical Protections Reverse Polarity, Transients, EMI
Correlated Color Temperature (CCT) 5700K
Color Rendering Index (CRI) 75
Ingress Protection Rating (IP) IP65+
Approximate Ship Weight (lbs) 1
