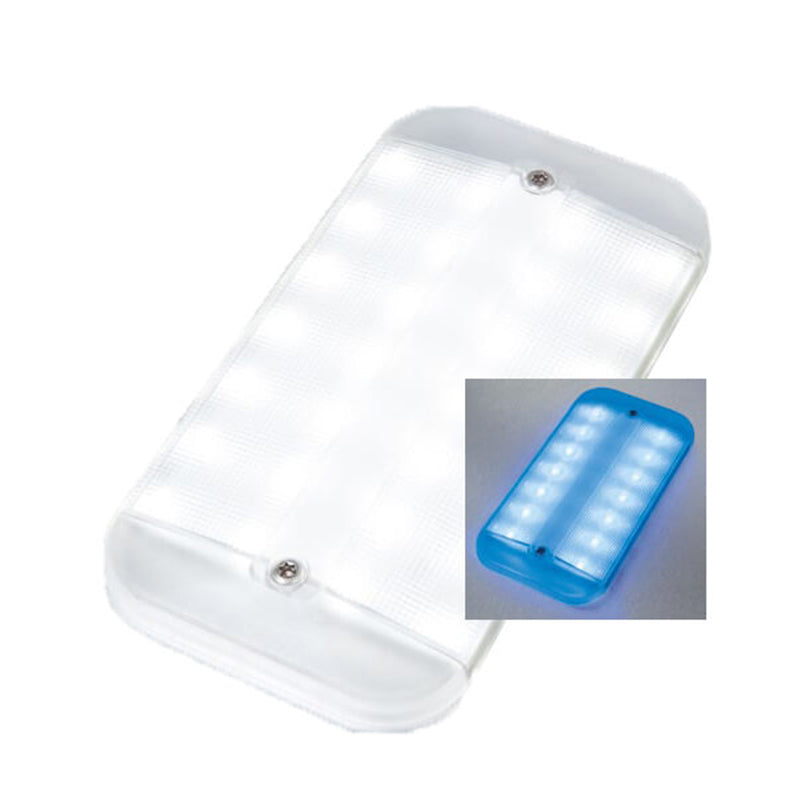

F-28 LED, Clear, Cool White with Blue Nightlight 10-30VDC, Surface-Mount
F-28 LED, Clear, Cool White with Blue Nightlight 10-30VDC, Surface-Mount
Regular price
$104.48 USD
Regular price
Sale price
$104.48 USD
Unit price
/
per
Shipping calculated at checkout.
F-28 is an extremely efficient, super high output, low-profile surface-mounted fixture designed for environments prone to extreme water exposure and high shock loads/vibration.
Feature
- Ultra slim surface-mount design
- High lumen, non-glare light output
- Integrated driver for ease of installation
- Rear or side-entry cabling
- Designed for extremely wet environments
- Single color and bi-color models available
- Excellent choice for engine/utility rooms, holds
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | Polycarbonate |
| Certifications & Compliance | CE, ROHS |
| Integrated Switch | No |
| Output Color | Cool/Blue |
| Lifetime Hours | 50,000 hrs |
| Class | F-Rated, Class III |
| Trim Ring (Bezel) Dimensions | 6.70 x 3.54" (170 x 90mm) |
| Trim Ring (Bezel) Finish/Material | Semi-transparent Polycarbonate |
| Input Voltage | 10-30VDC |
| Input Voltage Range | 24V |
| Warranty | 3 Years |
| Power Consumption | 7.0W |
| Lens Material | Polycarbonate |
| Ingress Protection | IP67 |
| Mounting Method | Screws |
| Light Technology | LED |
| Luminous Flux | 600 lm |
| Switch | Not Included |
| Driver | Integrated |
| Electrical Protections | Reverse Polarity, Transients, EMI |
| Correlated Color Temperature (CCT) | 5700K |
| Color Rendering Index (CRI) | 75 |
| Ingress Protection Rating (IP) | IP65+ |
| Approximate Ship Weight (lbs) | 1 |
Downloads:
Dimensional Drawing
Wiring Drawing
Product Sheet
