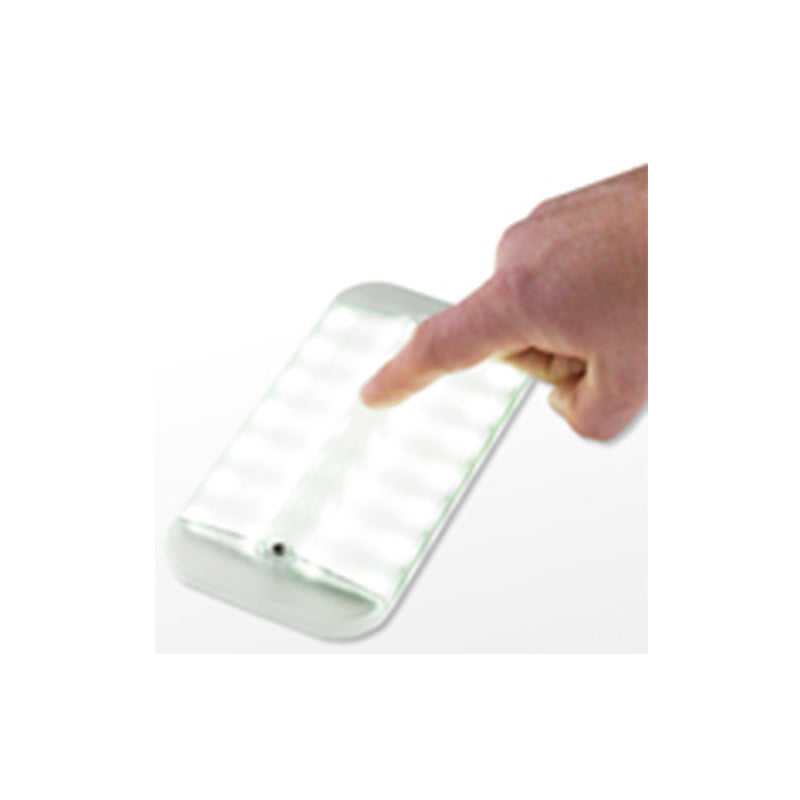

F-28 Double-TouchLED, Surface-Mount, Clear, Cool White/Blue, 10-30VDC
F-28 Double-TouchLED, Surface-Mount, Clear, Cool White/Blue, 10-30VDC
Regular price
$119.51 USD
Regular price
Sale price
$119.51 USD
Unit price
/
per
Shipping calculated at checkout.
F-28 TouchLED is an extremely efficient, super high output, low-profile surface-mounted fixture designed for environments prone to extreme water exposure and high shock loads/vibration.
Feature
- Ultra slim surface-mount design
- Dual color, high lumen, non-glare light output
- Convenient integrated "touch" switch control
- Integrated driver for ease of installation
- Rear or side-entry cabling
- Designed for extremely wet environments
- Excellent choice for engine/utility rooms, holds
Specifications
| Name | Description |
|---|---|
| Certifications & Compliance | CE, ROHS, Igntion protection certified to USCG/ISO/SAE/NMMA standards |
| Integrated Switch | Yes (Touch Sensor) |
| Output Color | Cool White/Blue |
| Lifetime Hours | 50,000 hrs |
| Class | F-Rated, Class III |
| Trim Ring (Bezel) Dimensions | 6.70 x 3.54" (170 x 90mm) |
| Trim Ring (Bezel) Finish/Material | Semi-transparent Polycarbonate |
| Input Voltage | 10-30VDC |
| Warranty | 3 Years |
| Power Consumption | 7.0W |
| Ingress Protection | IP67 |
| Mounting Method | Screws |
| Luminous Flux | 600 lm |
| Driver | Integrated |
| Electrical Protections | Reverse Polarity, Transients, EMI |
| Correlated Color Temperature (CCT) | 5700K |
| Color Rendering Index (CRI) | 75 |
| Approximate Ship Weight (lbs) | 1 |
Downloads:
Product Catalog
Dimensional Drawing
Product Sheet
