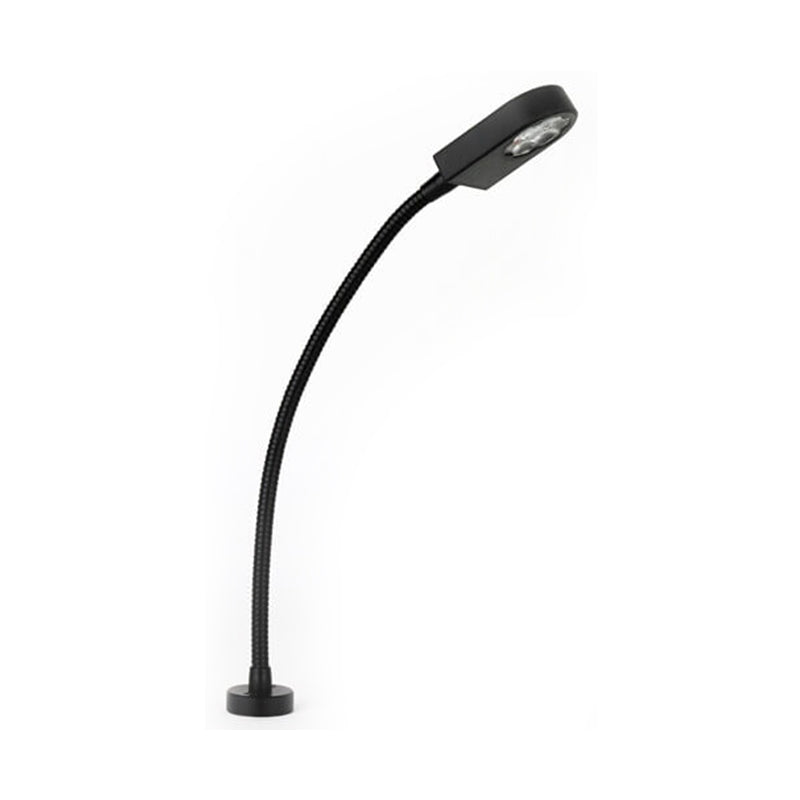

F-26 TouchLED, Black, 12" (300mm), Red Standard Mount, 10-30VDC
F-26 TouchLED, Black, 12" (300mm), Red Standard Mount, 10-30VDC
Regular price
$89.45 USD
Regular price
Sale price
$89.45 USD
Unit price
/
per
Shipping calculated at checkout.
The F-26 TouchLED Chart Light features an umbilical (gooseneck) design and a silent, touch-activated on/off switch. This version features single color, red illumination and flat mounting base for table or dash mount installations.
Feature
- Flat mounting base for table/dash mounting
- No mechanical switches - touch activation
- Current regulated LED driver
- Flexible gooseneck design
Specifications
| Name | Description |
|---|---|
| Certifications & Compliance | CE-EMC |
| Integrated Switch | Yes, Photo-sensor "TouchLED" |
| Output Color | Red |
| Lifetime Hours | 30,000 hrs (L70) |
| Input Voltage | 10-30VDC |
| Input Voltage Range | 24V |
| Finish | Black |
| Warranty | 3 Years |
| Power Consumption | On: 100mA Standby Mode: 2mA |
| Materials | Stainless Steel, ABS, Electro-plated Steel |
| Ingress Protection | IP40 |
| Base Dimensions | 1.36"/34.5mm |
| Shade Dimensions | 2.75 x 1.77 x .60" (70 x 45 x 15mm) |
| Light Technology | LED |
| Mounting Method | Screw-mount |
| Beam Angle | 0-45° |
| Arm Length | 11.81" (300mm) |
| Luminous Flux | 63 lms |
| Switch | Touch Sensitive |
| Electrical Protections | Reverse Polarity, Surge Protection |
| Ingress Protection Rating (IP) | IP20-IP55 |
| Approximate Ship Weight (lbs) | 1 |
