F-23 LED, Black, Blue, 10-30VDC Surface-Mount Courtesy
F-23 LED, Black, Blue, 10-30VDC Surface-Mount Courtesy
Regular price
$21.79 USD
Regular price
Sale price
$21.79 USD
Unit price
/
per
Shipping calculated at checkout.

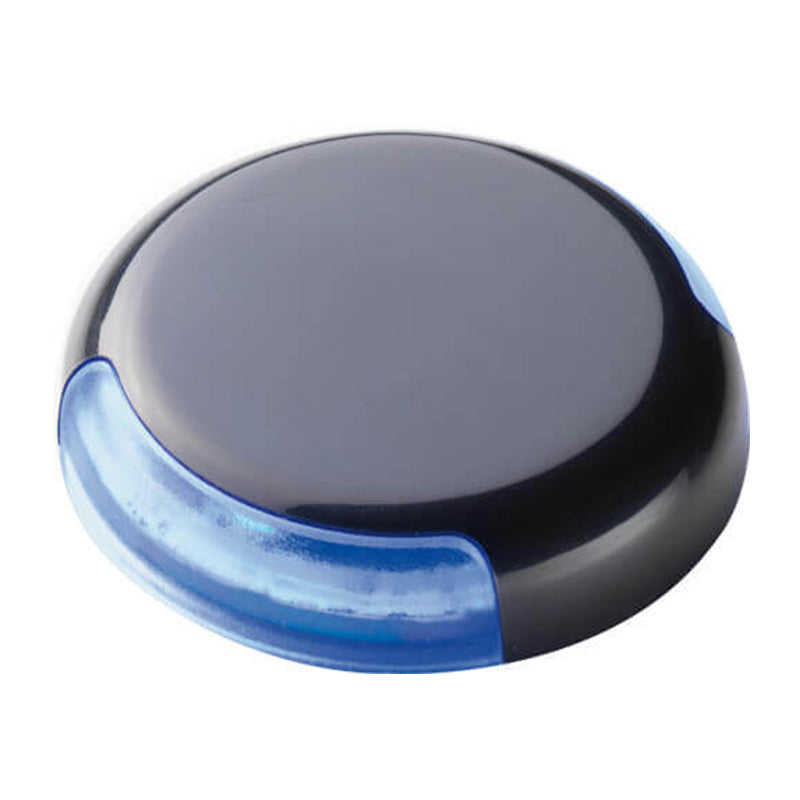

F-23 is a small low profile surface-mount LED courtesy light offered in three different bezel finishes and several LED colors.
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | Polycarbonate |
| Certifications & Compliance | CE, ROHS |
| Integrated Switch | No |
| Output Color | Blue |
| Lifetime Hours | 35,000 hrs |
| Class | F-Rated, Class III |
| Trim Ring (Bezel) Dimensions | 1.41" (36mm) x 0.35" (9mm) |
| Trim Ring (Bezel) Finish/Material | Black Polycarbonate |
| Input Voltage | 10-30VDC |
| Input Voltage Range | 24V |
| Warranty | 3 Years |
| Power Consumption | 0.5W |
| Lens Material | Polycarbonate |
| Base Dimensions | Ø 1.41" (36mm) x 0.35" (9mm) |
| Ingress Protection | IP67 |
| Mounting Method | Screw (one) |
| Light Technology | LED |
| Beam Angle | 90°+ |
| Luminous Flux | 15 lms |
| Switch | Not Included |
| Driver | Integrated |
| Electrical Protections | Reverse Polarity, Transients, EMI |
| Ingress Protection Rating (IP) | IP65+ |
| Approximate Ship Weight (lbs) | 1 |
