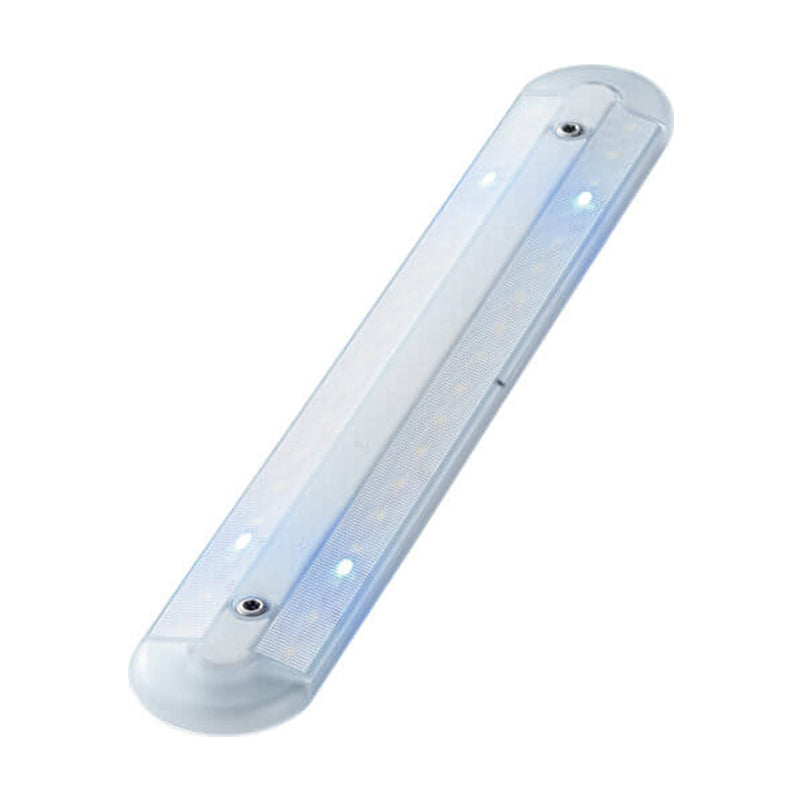

F-22 HO Linear LED, Touchsensor Switch, CW/Blue Clear Housing, High Output, 10-30V, 8W
F-22 HO Linear LED, Touchsensor Switch, CW/Blue Clear Housing, High Output, 10-30V, 8W
Regular price
$112.00 USD
Regular price
Sale price
$112.00 USD
Unit price
/
per
Shipping calculated at checkout.
The F-22 HO is an extremely low-profile touch activated linear LED fixture featuring dual color operation.
Feature
- Extreme low-profile surface-mount water-proof design
- Illuminated touch sensor switch
- Dual LED color (cool white/red) operation
- Non-glare semi-transparent PCB lens
- Multi-voltage: 10-30VDC
- Maintenance free: No bulbs to change
- Low power consumption
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | UV stabilized polycarbonate |
| Integrated Switch | Yes, Touch Activation |
| Lifetime Hours | 35,000 hrs (L70) |
| Input Voltage | 10-30VDC |
| Input Voltage Range | 12V |
| Dimensions | 10.63 x 1.57 x 0.31" (270 x 40 x 8mm) |
| Finish | Translucent |
| Warranty | 3 Years |
| Lens Material | UV stabilized polycarbonate |
| Power Consumption | 8.0W |
| Ingress Protection | IP67 |
| Light Technology | LED |
| Mounting Method | Surface-mount (with screws) |
| Beam Angle | 90°+ |
| Luminous Flux | 550 lms |
| Switch | Touch Sensitive |
| Electrical Protections | Reverse Polarity, Transients, EMI |
| Correlated Color Temperature (CCT) | 5700K, White |
| Color Rendering Index (CRI) | 75 |
| Ingress Protection Rating (IP) | IP65+ |
| Approximate Ship Weight (lbs) | 1 |
Downloads:
Dimensional Drawing
Photometric Chart
