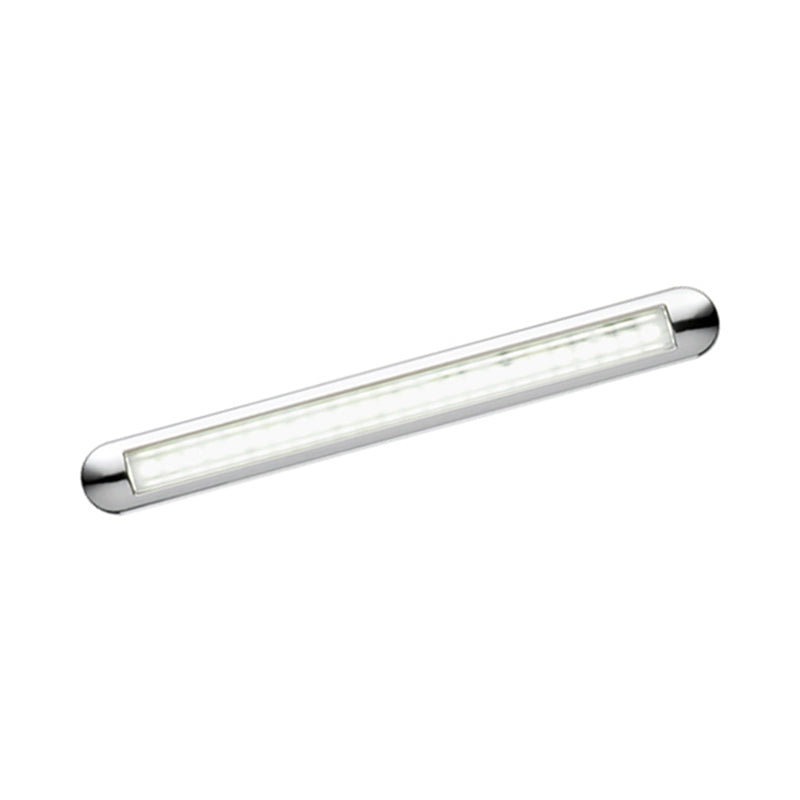

F-20 Recessed Linear TouchLED, 10-30VDC, Chrome Warm White LED, TouchLED
F-20 Recessed Linear TouchLED, 10-30VDC, Chrome Warm White LED, TouchLED
Regular price
$134.55 USD
Regular price
Sale price
$134.55 USD
Unit price
/
per
Shipping calculated at checkout.
An attractive recessed (flush-mount) linear designed fixture, the F-20 boasts an array of high brightness Cree warm white LEDs delivering bright, wide angle illumination for task areas or general room lighting.
Feature
- No mechanical switches - touch activation
- Efficient aluminum heat sink
- Non-glare semi-transparent PCB lens
- Convenient snap-on trim ring design
- Multi-voltage: 10-30VDC
- Minimal recessed depth required
- Maintenance free: No bulbs to change
- Low power consumption
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | Aluminum/Polycarbonate |
| Integrated Switch | Yes, Touch Activation |
| Output Color | Warm White |
| Lifetime Hours | 20,000 hrs (L70) |
| Trim Ring (Bezel) Finish/Material | Chrome/Technopolymer |
| Input Voltage | 10-30VDC |
| Dimensions | 13.58 x 1.57 x 0.79" (345 x 40 x 20mm) |
| Warranty | 3 Years |
| Power Consumption | 8.0W |
| Mounting Method | Screws |
| Light Technology | LED |
| Luminous Flux | 450 lms |
| Electrical Protections | Reverse Polarity, Transients, EMI |
| Correlated Color Temperature (CCT) | 3000K |
| Color Rendering Index (CRI) | 80 |
| Ingress Protection Rating (IP) | IP65+ |
| Approximate Ship Weight (lbs) | 1 |
Downloads:
Product Catalog
Dimensional Drawing
Photometric Chart
Compatibility Chart
