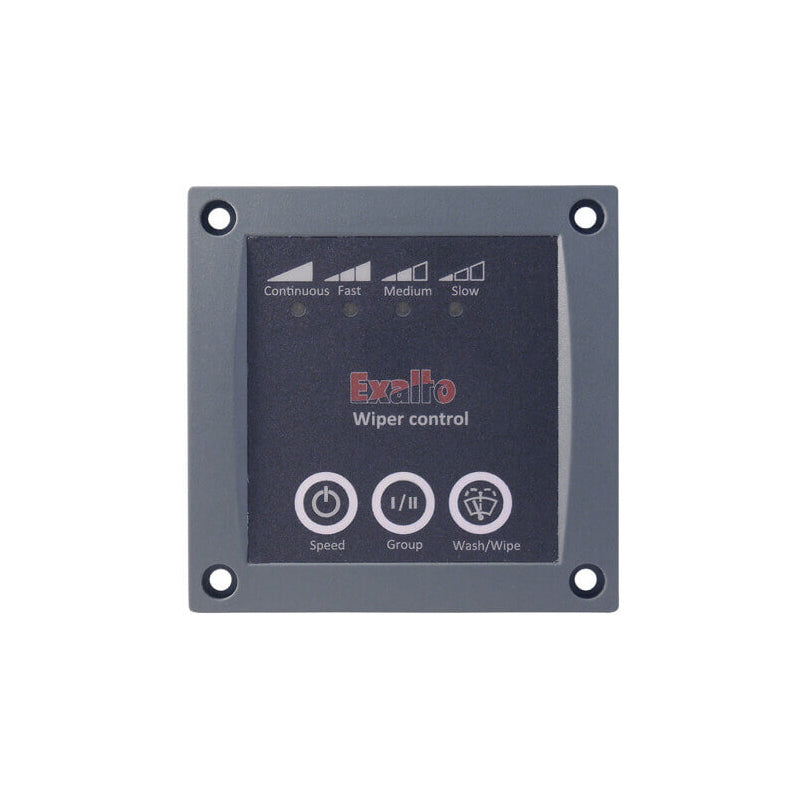

Electronic Wiper Control Panel For up to 4 Roca (or similar) wiper motors, 12/24V
Electronic Wiper Control Panel For up to 4 Roca (or similar) wiper motors, 12/24V
Regular price
$732.78 USD
Regular price
Sale price
$732.78 USD
Unit price
/
per
Shipping calculated at checkout.
Electronic Wiper Control Panel for up to 4 Roca (or similar 4-wire) wiper motors, 12/24V.
This control is compatible with the following wiper system: W10 and W12
Feature
- Operates up to four wipers (two wipers per group)
- Groups can be turned on or off independently or together
- Wipers can be run continuously or in three levels of intermittent operation – setting is shown with LED indicators
- Features “smart” wipe/wash function
Specifications
| Name | Description |
|---|---|
| Cut-out Dimensions | 3" (75mm) diameter |
| Voltage | 12V |
| Voltage | 24V |
| Dimensions | 3.5" h x 3.5" w x 2.4" d (90 x 90 x 61mm) |
| Internal power consumption | 2W |
| Output per wiper connection | 3A max. |
| Output per wash contact | 3A max. |
| Works with | Roca, Speich, Afi, TMC or American Bosch Wipers |
| Do Not Use With | Imtra's W38 Wiper Motors |
| Approximate Ship Weight (lbs) | 1 |
