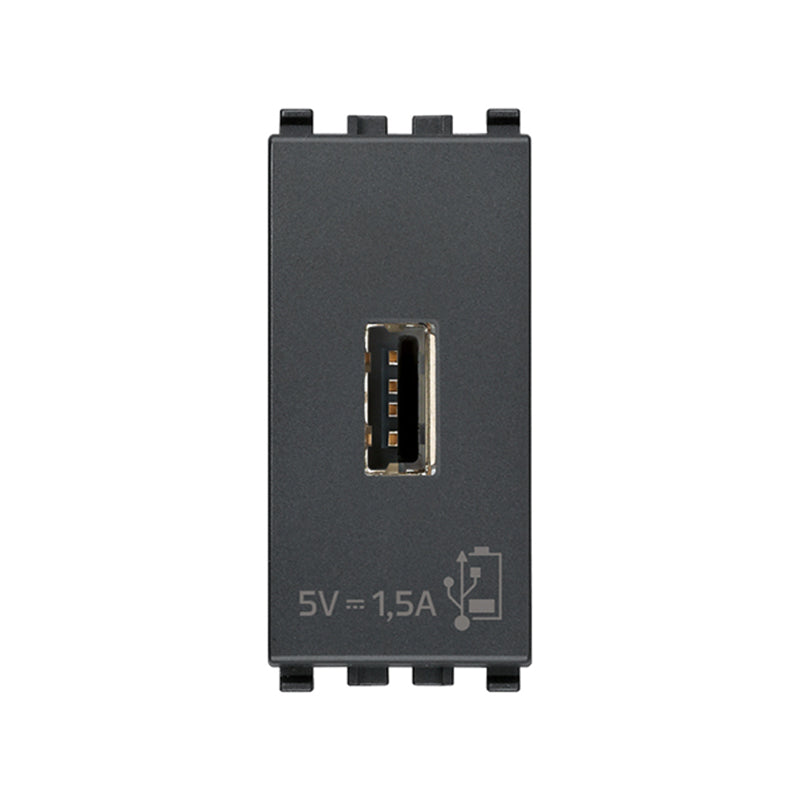

Eikon High Power USB Outlet 120/230VAC, 1 Module, Grey
Eikon High Power USB Outlet 120/230VAC, 1 Module, Grey
Regular price
$41.19 USD
Regular price
Sale price
$41.19 USD
Unit price
/
per
Shipping calculated at checkout.
This device is used for charging mobile phones and all electronic devices that offer the feature of charging via a standard USB port.
Features
- Max output (charging) load: 1.5A
- Max output voltage: 5VDC
- Also available in White or Next (silver)
- Fits in seamlessly with all Eikon-World cover plates
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | Grey/Plastic |
| Certifications & Compliance | CE-EMC, ROHS, IMQ |
| Class | Class I & II |
| Dimensions | 0.87" (22.3mm) x 1.93" (49mm) x 1.83" (46.5mm) |
| Warranty | 3 Years |
| Output voltage | 5V DC (+/- 5%) SELV |
| Power Consumption | 160mA @ 120V, 110mA @ 230V |
| Recessed Depth | 1.46" (37mm) |
| Ingress Protection | IP20 |
| Load Rating | 1.5A max |
| Max Operating Temperature | 95dg F (+35dg C) |
| Standby Current | Less than 100mA |
| Efficiency | 75% |
| Electrical Protections | Overload |
| Ingress Protection Rating (IP) | IP20-IP55 |
| Approximate Ship Weight (lbs) | 1 |
