Duxbury LED Downlight, Stainless Steel Cool White, 10-30VDC
Duxbury LED Downlight, Stainless Steel Cool White, 10-30VDC
Regular price
$46.60 USD
Regular price
$66.96 USD
Sale price
$46.60 USD
Unit price
/
per
Shipping calculated at checkout.

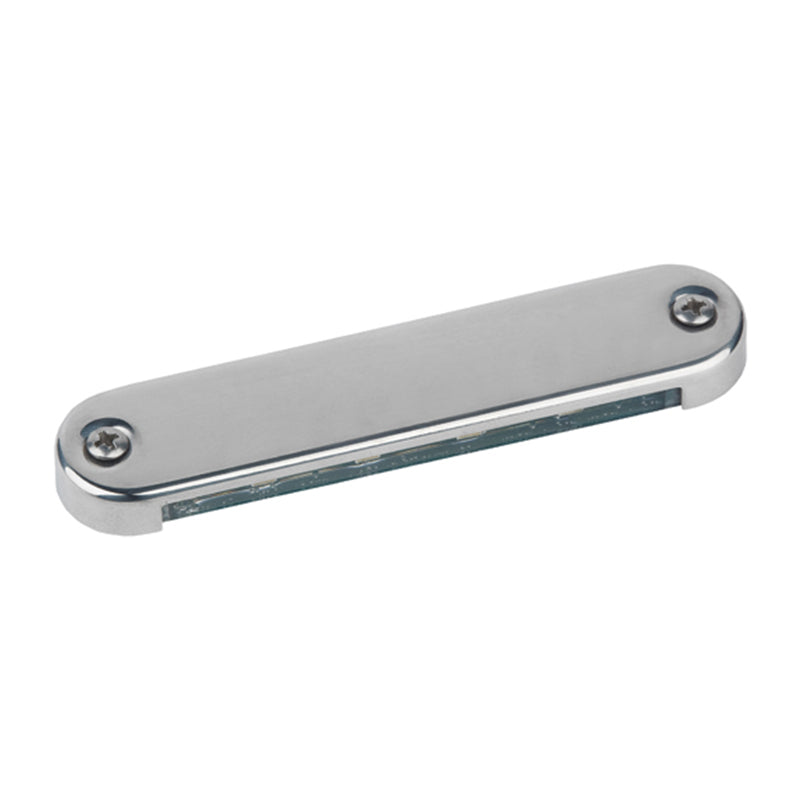

The Duxbury LED courtesy light is the ideal courtesy and step light for indirect lighting applications. It contains four "hidden" low power SMD LEDs that project their subtle non-glare illumination in a downward direction to effectively illuminate steps and walkways.
Feature
- AISI 316 stainless steel bezel
- Completely sealed & potted LED sub-assembly
- Miniscule power consumption
- Simplified surface-mount installation
- Integrated constant-current driver
- Up to 50,000 hours life
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | AISI 316 stainless steel |
| Output Color | Cool White |
| Input Voltage | 10-30VDC |
| Dimensions | 3.50 x 0.75 x 0.30" (89 x 19 x 7.6mm) |
| Finish | Polished Stainless Steel |
| Power Consumption | 0.48W @ 12V / 0.96W @ 24V |
| Ingress Protection | IP66 |
| Mounting Method | Screws |
| Luminous Flux | 11.5 lms |
| Electrical Protections | Reverse Polarity, 200V Spike Protection, Transient Protection |
| Approximate Ship Weight (lbs) | 1 |
Downloads:
Owner's Manual
Product Catalog
Product Sheet
Template
Dimensional Drawing
Compatibility Chart
Share
