DRIVEPILOT™ HYDRAULIC STEER PACK (SIMRAD)

Everything you need in one box to fit an autopilot to your hydraulic-steer outboard motor, the DrivePilot™ lets you focus on any activity while keeping the boat on course. When connected to a NSS evo2 or NSO evo2 multifunction display (DrivePilot™ requires the latest NSS/NSO evo2 software), it can steer to a waypoint or along a route, select a turn pattern or simply hold a constant heading.

• Steer your vessel to a heading, waypoint, route or cursor, with control from your NSS evo2 or NSO evo2 display.


• Repeat your path with automatic turn patterns.


• Recommended for outboard and sterndrive steering systems, on boats that are 30 feet and less, in length.


• VRF (Virtual Rudder Feedback) – simplifies pilot installation -- eliminating the need for a rudder position sensor.


• Easy setup – straightforward guide steps you through first-time install.


• Easy-to-install, plug-and-socket connection – with no complex terminal wiring.


• Supported by Simrad Service and Support program

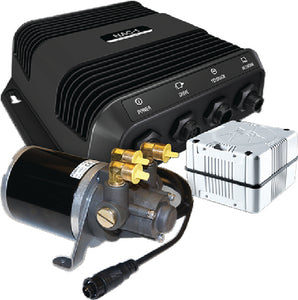

Includes:

• NAC-1 Autopilot Computer


• PUMP-1 Hydraulic Pump


• RC42 Heading Sensor


• Hydraulic Pump Fitting Kit - Everything you need to connect with your existing hydraulic system – including t-connectors, hoses and oil.


• Auto/Standby Button - Mounts anywhere on dash and changes Autopilot from STBY to AUTO mode with one press.


• NMEA 2000® Networking Kit
