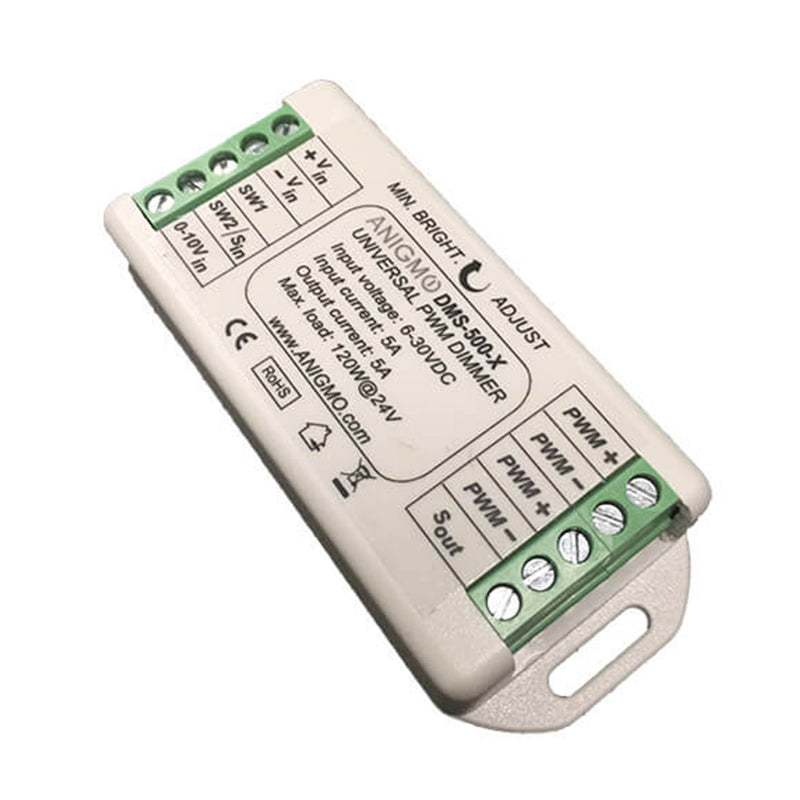

DMS-500 Universal Low Voltage LED Dimmer, 5A 6-30VDC or 0-10V Control Input
DMS-500 Universal Low Voltage LED Dimmer, 5A 6-30VDC or 0-10V Control Input
Regular price
$81.93 USD
Regular price
Sale price
$81.93 USD
Unit price
/
per
Shipping calculated at checkout.
With flicker-free, full range dimming performance, the DMS Series Universal Low Voltage LED Dimmer can dim most 12V-24V LED bulbs, flexible or rigid LED strips, and halogen/incandescent bulbs.
Feature
- Small compact form factor
- High frequency PWM delivers flicker-free lighting at all levels
- Smoothly dims typically hard to dim LED bulbs and flexible or rigid strips
- Safety features include Overheat, No-Load, Overload, & Short Circuit protection
- Can be controlled with a variety of input devices including momentary switches
- Accepts 0-10V (source) input signal from 3rd party centralized control systems
- Simple synchronization of multiple units for controlling larger loads
- Minimum brightness adjustable with built-in potentiometer
- Safe & reliable screw terminals
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | White/Plastic |
| Certifications & Compliance | CE, ROHS |
| Dimmer Compatibility | Intervolt Switchmode DC Dimmers |
| Dimmer Control Interface | Single or double momentary push-button, potentiometer |
| Input Voltage | 6-30VDC (or stable 0-10V source) |
| Dimensions | 3.75" (96mm) l x 1.50" (40mm) w x 0.75" (20mm) h |
| Warranty | 5 years |
| Ingress Protection | IP20 |
| Load Rating | 5A |
| Mounting Method | Two screws, double-side tape, or wire ties |
| Max Operating Temperature | 0° C - +50° C |
| Dimming Range | 0-100% with most products |
| Standby Current | <1.0mA |
| Install Location | Dry location |
| Electrical Protections | Overheat, no-load, overload, short-circuit |
| Ingress Protection Rating (IP) | IP20-IP55 |
| Approximate Ship Weight (lbs) | 1 |
Downloads:
Compatibility Chart
Dimensional Drawing
Installation Instructions
Owner's Manual
Wiring Drawing
