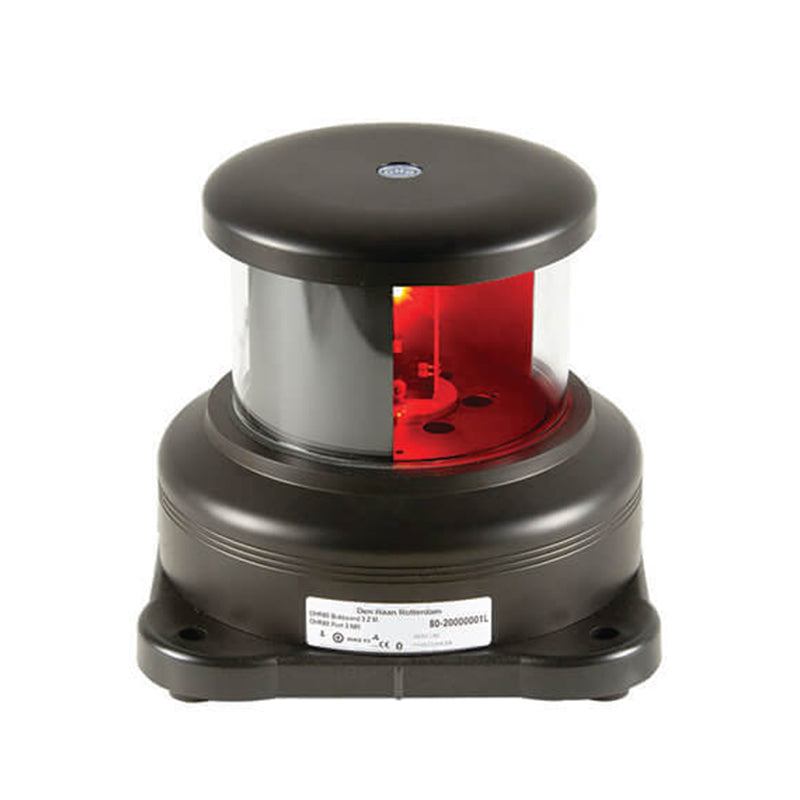

DHR80 All-Round Red LED, Base-Mount, Black, 24V (6W), 3NM, IP66, 360°
DHR80 All-Round Red LED, Base-Mount, Black, 24V (6W), 3NM, IP66, 360°
Regular price
$855.04 USD
Regular price
Sale price
$855.04 USD
Unit price
/
per
Shipping calculated at checkout.
With the all new DHR80 LED, vessels with a length of over 50 meters (164') can also be fitted with DHR LED Technology. Its modern, innovative and rugged design makes the DHR80 LED yet another standard in navigation lighting.
Feature
- For vessels over 50 meters in length
- Visibility from 3 to 6 NM (depending on application)
- UV resistant matte black, anodized aluminium housing
- Galvanically isolated back-up LED module built in to fixture
- POM base to prevent galvanic corrosion
- Borosilicate glass lens
- Epoxy potted LED driver for maximum protection
- User serviceable (parts and repair kit available)
Specifications
| Name | Description |
|---|---|
| Certifications & Compliance | IMO, Colreg 72, MED 96/98/EC, EN14744, UL1104 & USCG |
| Output Color | Red |
| Lifetime Hours | 50,000 hrs |
| Class | I, (grounded)/III |
| Input Voltage | 19-32VAC |
| Input Voltage | 24V |
| Dimensions | See dimensional drawing |
| Warranty | 3 Years |
| Lens Material | Boroscilicate glass |
| Ingress Protection | IP66 |
| Mounting Method | Base-mount |
| Driver | Integrated (main & spare) |
| Install Location | Mast |
| Electrical Protections | Transient Voltage, ESD Protection, Current Regulation |
| Ingress Protection Rating (IP) | IP65+ |
| Approximate Ship Weight (lbs) | 9 |
Downloads:
Product Sheet
Owner's Manual
Dimensional Drawing
