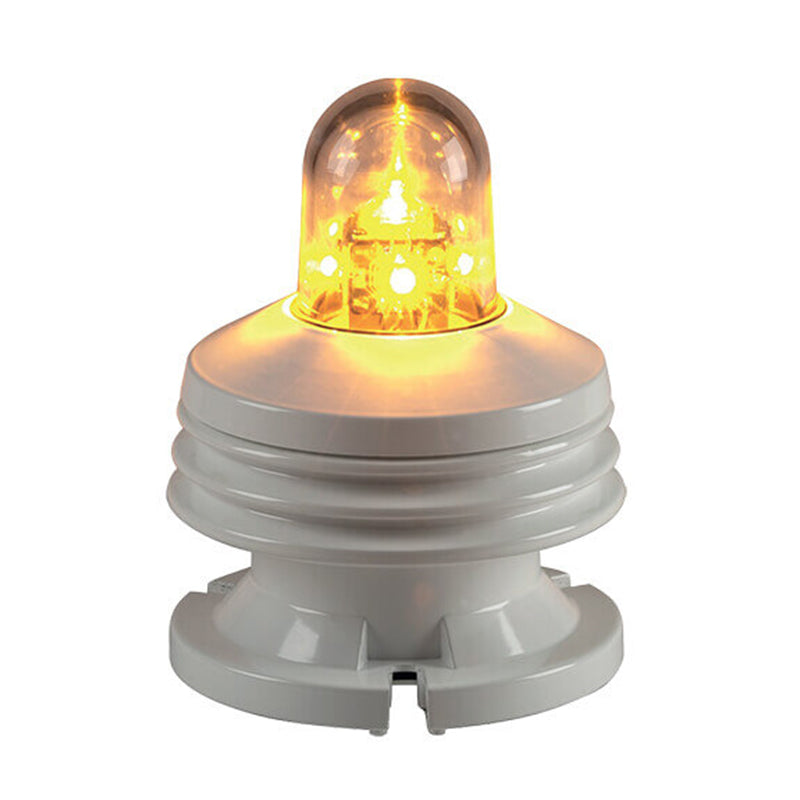

DHR73 Signalling Yellow LED, Base-Mount, White, 120/230VAC & 24VDC (10W), 3NM, IP67, 360°
DHR73 Signalling Yellow LED, Base-Mount, White, 120/230VAC & 24VDC (10W), 3NM, IP67, 360°
Regular price
$802.42 USD
Regular price
Sale price
$802.42 USD
Unit price
/
per
Shipping calculated at checkout.
The DHR73 LED Signalling light has a built-in power supply that may be connected to 90-265VAC or 24VDC. Another distinctive feature is the ability for the user to configure the signal characteristics including four different flashing or continuous mode.
Feature
- Multi voltage input: (120-230VAC and/or 24VDC)
- User settable signal frequency via dipswitch
- Chromate corrosion-resistant aluminum housing
- Durable UV-resistant powder coat gloss-white finish
- Visibility from 2 to 5 NM
- Toughened borosilicate well glass lens
- Epoxy potted LED driver
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | Gloss white powder coat/anodized aluminum housing |
| Certifications & Compliance | IMO, Colreg 72, MED 96/98/EC, EN14744, UL1104 & USCG |
| Output Color | Yellow |
| Lifetime Hours | 50,000 hrs |
| Class | I, (grounded)/III |
| Input Voltage | 90-265VAC and/ or 19-29V |
| Dimensions | See dimensional drawing |
| Warranty | 3 Years |
| Power Consumption | 10W |
| Lens Material | Boroscilicate well glass |
| Ingress Protection | IP67 |
| Mounting Method | Base-mount |
| Light Technology | LED |
| Driver | Integrated |
| Install Location | Roof top or mast |
| Electrical Protections | Transient Voltage, ESD Protection, Current Regulation |
| Ingress Protection Rating (IP) | IP65+ |
Downloads:
Product Sheet
Owner's Manual
Dimensional Drawing
