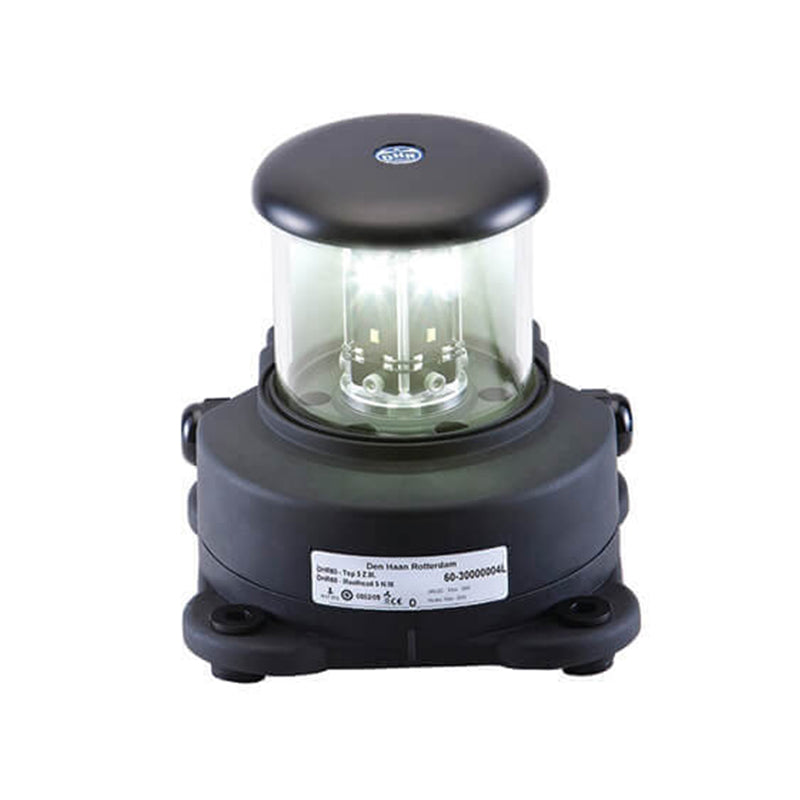

DHR60 All-Round White LED, Base-Mount, Black, 24V (4.1W), 2NM, IP66, 360°
DHR60 All-Round White LED, Base-Mount, Black, 24V (4.1W), 2NM, IP66, 360°
Regular price
$679.32 USD
Regular price
$831.60 USD
Sale price
$679.32 USD
Unit price
/
per
Shipping calculated at checkout.
The DHR60 LED is the all-rounder in the DHR LED navigation light series. Suitable for seagoing vessels from 20 to 50 meters (65' to 164') and inland navigation vessels from 20 meters and longer.
Feature
- For vessels up to 50 meters in length
- Visibility from 2 to 5 NM (depending on application)
- UV resistant matte black, anodized aluminum housing
- Galvanically isolated back-up LED module built in to fixture
- POM base to prevent galvanic corrosion
- Borosilicate glass lens
- Epoxy potted LED driver for maximum protection
- User serviceable (parts and repair kit available)
Specifications
| Name | Description |
|---|---|
| Certifications & Compliance | IMO, Colreg 72, MED 96/98/EC, EN14744, UL1104 & USCG |
| Output Color | White |
| Lifetime Hours | 50,000 hrs |
| Class | I, (grounded)/III |
| Input Voltage | 19-32VAC |
| Input Voltage | 24V |
| Dimensions | See dimensional drawing |
| Warranty | 3 Years |
| Power Consumption | 4.1W |
| Lens Material | Boroscilicate glass |
| Ingress Protection | IP66 |
| Mounting Method | Base-mount |
| Driver | Integrated (main & spare) |
| Install Location | Mast |
| Electrical Protections | Transient Voltage, ESD Protection, Current Regulation |
| Ingress Protection Rating (IP) | IP65+ |
| Approximate Ship Weight (lbs) | 6 |
Downloads:
Product Sheet
Owner's Manual
Dimensional Drawing
