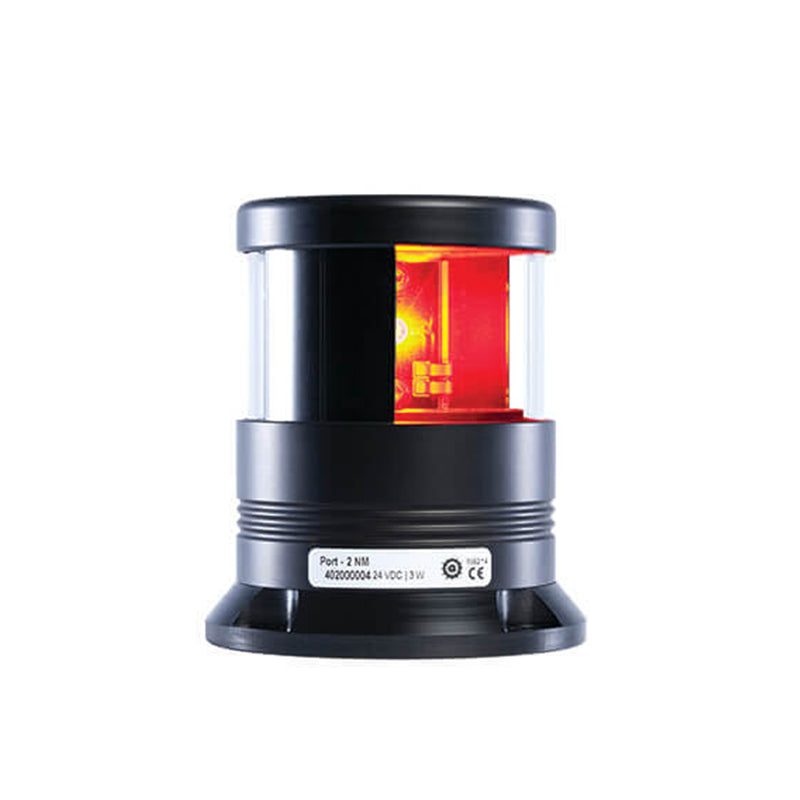

DHR40 All-Round Red LED, Base-Mount, Black, 24V (3.2W), 2NM, IP66, 360°
DHR40 All-Round Red LED, Base-Mount, Black, 24V (3.2W), 2NM, IP66, 360°
Regular price
$425.33 USD
Regular price
Sale price
$425.33 USD
Unit price
/
per
Shipping calculated at checkout.
The DHR40 LED, our most compact navigation light with LED Technology. Ideally suited for small boats and agile vessels, because of its excellent visibility characteristics at high vertical angles.
Feature
- For vessels up to 50 meters in length
- Visibility from 2 to 5 NM (depending on application)
- UV resistant matte black, anodized aluminum housing
- Galvanically isolated back-up LED module built in to fixture
- POM base to prevent galvanic corrosion
- Borosilicate glass lens
- Epoxy potted LED driver for maximum protection
- User serviceable (parts and repair kit available)
Specifications
| Name | Description |
|---|---|
| Certifications & Compliance | IMO, Colreg 72, MED 96/98/EC, EN14744, UL1104 & USCG |
| Output Color | Red |
| Lifetime Hours | 50,000 hrs |
| Class | I, (grounded)/III |
| Input Voltage | 19-32VAC |
| Input Voltage | 24V |
| Dimensions | See dimensional drawing |
| Warranty | 3 Years |
| Lens Material | Boroscilicate glass |
| Power Consumption | 3.2W |
| Ingress Protection | IP66 |
| Mounting Method | Base-mount |
| Driver | Integrated (main & spare) |
| Install Location | Mast |
| Electrical Protections | Transient Voltage, ESD Protection, Current Regulation |
| Ingress Protection Rating (IP) | IP65+ |
| Approximate Ship Weight (lbs) | 2 |
Downloads:
Product Sheet
Owner's Manual
Dimensional Drawing
