CT41 Compact, Full-Function Electronic Wiper Wiper Control Switch for One Wiper, 12/24V
CT41 Compact, Full-Function Electronic Wiper Wiper Control Switch for One Wiper, 12/24V
Regular price
$322.92 USD
Regular price
Sale price
$322.92 USD
Unit price
/
per
Shipping calculated at checkout.

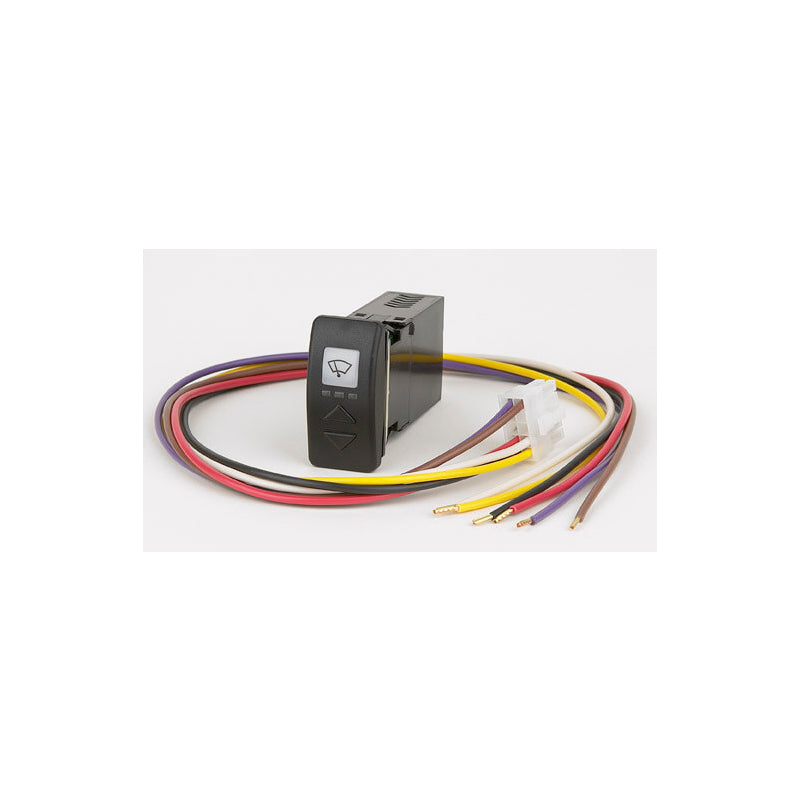

The CT41 is a compact, full-function electronic wiper control switch for one wiper, 12/24V
An intelligent wiper switch for one Exalto (or similar) wiper motor. Control speeds (low, high, 3 levels of intermittent), engage a washing system or simply turn the wiper on and off with these clever new switches that fit into most switchpanel design housings. Works with Exalto, IMW, Roca and most other popular brands of wiper motors.
Includes wiring harness for one wiper.
This wiper switch is compatible with the following wiper systems:
Feature
-
Easy to install and to use
-
Two continuous speeds
-
Three intermittent speeds
-
Perfect self-parking due to dynamic brake
-
Wipe/Wash program
-
Dimmer input
-
Complete visual indicators ("ON", continuous and intermittent modes)
For complete operating instructions, download the owner's manual to the right.
Specifications
| Name | Description |
|---|---|
| Voltage | 12V |
| Voltage | 24V |
| Internal Fuse | 4 Amp |
| Stand-By Current | less than 20mA |
| Motor Output Current | 4 Amp Max |
| Working Temperature | -10 to +50 degree C |
| Storage Temperature | -20 to +70 degree C |
| Inputs | 1 Parking Signal, Open in Park Position |
| Outputs | 1 Slow, 1 High Speed, 1 Wash Pump/Solenoid, Positive Pole |
| Overall Dimensions (W x H x D) | 1 x 2 x 3.5" (24 x 49.5 x 91mm) |
| Approximate Ship Weight (lbs) | 1 |
Downloads:
Product Sheet
Dimensional Drawing
Wiring Drawing
Owner's Manual
