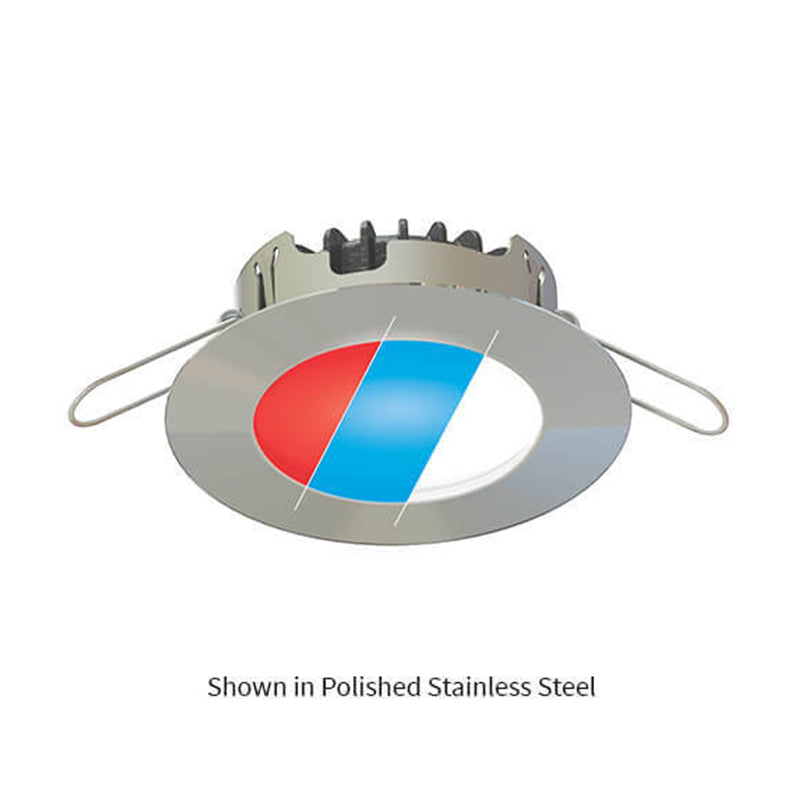

Blade PowerLED Tri-Color, 10-40VDC, Brushed, Red/Blue/Cool, 5.0W, IP65
Blade PowerLED Tri-Color, 10-40VDC, Brushed, Red/Blue/Cool, 5.0W, IP65
Regular price
$141.31 USD
Regular price
Sale price
$141.31 USD
Unit price
/
per
Shipping calculated at checkout.
The Tri-Color Series is a comprehensive range of recessed and surface-mount downlights featuring the ability to select from three different LED colors (e.g. Red/Blue/Cool White or Red/Blue/Warm White).
Feature
- Select between Red, Blue and high-brightness white
- Just 2 wires to control power and color selection
- Control via (user-provided) single On/Off switch
- 10-40VDC input voltage (12/24/32VDC systems)
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | Black Electrophoretic Aluminum |
| Certifications & Compliance | CE-EMC, ROHS |
| Integrated Switch | No |
| Output Color | Red/Blue/Cool White |
| Lifetime Hours | 50,000 hrs |
| Class | Class III |
| Dimmer Compatibility | Non-Dimmable |
| Dimmer Control Interface | NOT DIMMABLE |
| Cut-out Dimensions | 2.65" (67mm) |
| Trim Ring (Bezel) Dimensions | 3.63" (92mm) dia |
| Trim Ring (Bezel) Finish/Material | Brushed Stainless Steel |
| Halogen Equivalency | 25W |
| Input Voltage | 10-30VDC |
| Warranty | 5 Years / 1 Year Finish |
| Dimensions | See dimensional drawing |
| Power Consumption | 5.0W |
| Recessed Depth | 1.09" (28mm) |
| Lens Material | Frosted glass |
| Ingress Protection | IP65 (applies only to frontal water exposure, i.e. Exposed surface) |
| Dimming Range | 5-100% |
| Luminous Flux | 197 lms |
| Driver | Integrated |
| Install Location | Ceilings (interior) |
| Electrical Protections | Reverse Polarity, Transient & Spike Protection |
| Correlated Color Temperature (CCT) | 6000K (White LED) |
| Color Rendering Index (CRI) | 85 |
| Approximate Ship Weight (lbs) | 1 |
