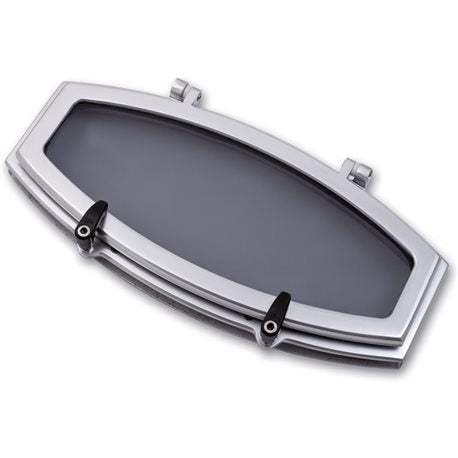

Aluminium portlights

Aluminium portlights

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Approved Model EC Directive 94/25/C

rina   ISO12216   CE

Spigot: 200 x 430 mm

Data sheet

All our portlights are cast from an anodised light aluminium alloy.
A special adjustable friction system allows for an almost infinite variation of open positions and locking is via a pair of rotating handles.
A simple design allows the portholes to be fitted to hulls of varying thicknesses
from 20 mm to 45 mm with the added advantage of having no screws or rivets visible on the exterior frame.
A marine grade neoprene seal guarantees watertightness in all conditions and the 7 mm thick PMMA Perspex is supplied in a standard smoke grey colour.
A removable white plastic mosquito net is available as an option.



A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

zanzariera

Dim.

(mm)

914A 460 390 220 150 200 x 430 20/45 914A.Z 400 x 150

zanzariera Zanzariere

914Adwg
