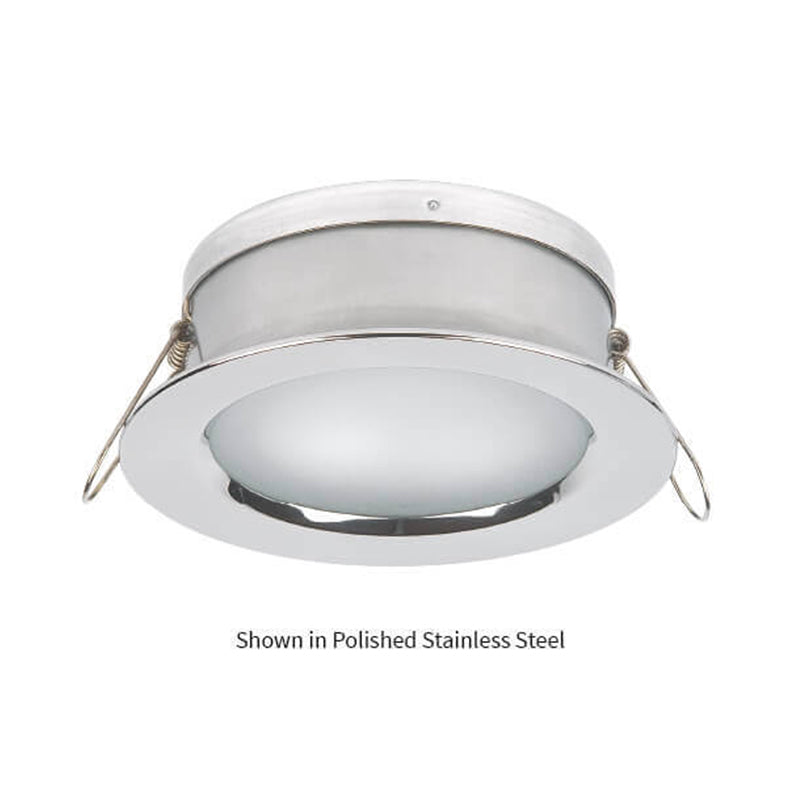

A105 PowerLED, 10-40VDC, White, Cool White, 4.7W, IP65
A105 PowerLED, 10-40VDC, White, Cool White, 4.7W, IP65
Regular price
$116.51 USD
Regular price
Sale price
$116.51 USD
Unit price
/
per
Shipping calculated at checkout.
All the downlights in this series are offered with a choice of LED color in addition to Bi-Color options.
Specifications
| Name | Description |
|---|---|
| Housing Finish/Material | Aluminum |
| Certifications & Compliance | CE-EMC, ROHS |
| Integrated Switch | No |
| Output Color | Cool White |
| Lifetime Hours | 50,000 hrs |
| Class | Class III |
| Dimmer Compatibility | ILIM80130, ILIM80140 |
| Dimmer Control Interface | Momentary Push-Button |
| Cut-out Dimensions | 3.39" (86mm) |
| Trim Ring (Bezel) Dimensions | 4.13" (105mm) |
| Trim Ring (Bezel) Finish/Material | White |
| Halogen Equivalency | 25W |
| Input Voltage | 10-30VDC |
| Warranty | 5 Years / 1 Year Finish |
| Dimensions | See dimensional drawing |
| Power Consumption | 4.7W |
| Lens Material | Frosted glass |
| Recessed Depth | 1.53" (39mm) |
| Ingress Protection | IP65 (applies only to frontal water exposure, i.e. Exposed surface) |
| Dimming Range | 5-100% |
| Luminous Flux | 216 lms |
| Driver | Integrated |
| Install Location | Ceilings (interior) |
| Electrical Protections | Reverse Polarity, Transient & Spike Protection |
| Correlated Color Temperature (CCT) | 6000K (White LED) |
| Color Rendering Index (CRI) | 85 |
| Approximate Ship Weight (lbs) | 1 |
